Teenage Engineering OP-1 Field

The Beauty of Evolution — Meet the All-New OP–1 Field

The OP–1 Field is the natural next step in portable music production. Built on over a decade of innovation and feedback from professional musicians, producers, and sound designers, this is a complete reimagining of a modern classic—refined, updated, and elevated in every way.

Housed in a beautifully machined natural anodized aluminium chassis, the OP–1 Field features a slim, low-profile frame with a new floating keyboard and refined color palette. The high-resolution screen is protected by flush glass, and the entire signal path is now fully stereo - from input to output.

Packed with over 100 new features, it introduces stereo tape machines, multiple recording formats, eight tape reels, a new lush-sounding reverb, and the brand-new Dimension synth engine. The redesigned speaker system, now with a passive radiator, delivers detailed, rich, and surprisingly powerful sound.

Stay fully connected with upgraded USB-C, a rugged 4-pole audio jack for headset mic support, and durable line in/out sockets. Bluetooth MIDI, MFi support for iPhone, and a newly enhanced FM antenna (now capable of both receiving and transmitting) ensure total creative flexibility, wherever you are.

With 24-hour battery life, 32-bit audio, dual Velcro back fasteners, and intuitive graphics redesigned screen by screen, the OP–1 Field isn’t just an update—it’s a revolution in portable music-making.

Features

General

• Highly portable synthesizer, sampler and drum synth
• Integrated USB-C audio interface
• Four-track, 32-bit stereo tape recorder
• Deep stereo sampling engine with zoom-in function
• Unique ‘tape’ recording – up to eight tapes in total
• Stereo drum machine with dbox drum synth for creating sounds from scratch
• Seven sequencer including arpeggio
• Eight stereo effects (can also be applied to master output)
• Built-in speaker with improved bass performance
• FM radio receiver and transmitter – sample sounds from the radio
• Accelerometer and gyroscope
• MIDI over Bluetooth LE
• 24-hour rechargeable battery

What’s New

• Vocoder - available via firmware update
• All new low profile aluminum body
• High resolution flush display
• Internal FM antenna for both rx and tx
• Eight swappable tapes for recording
• Four different tape styles
• All new drum kit packs
• New reverb effect: mother
• New synth engine: dimension
• New speaker with passive radiator
• MFI - iPhone USB MIDI and audio connectivity
• Battery life increased to 24h
• Slimmer and sleeker profile
• New colour scheme

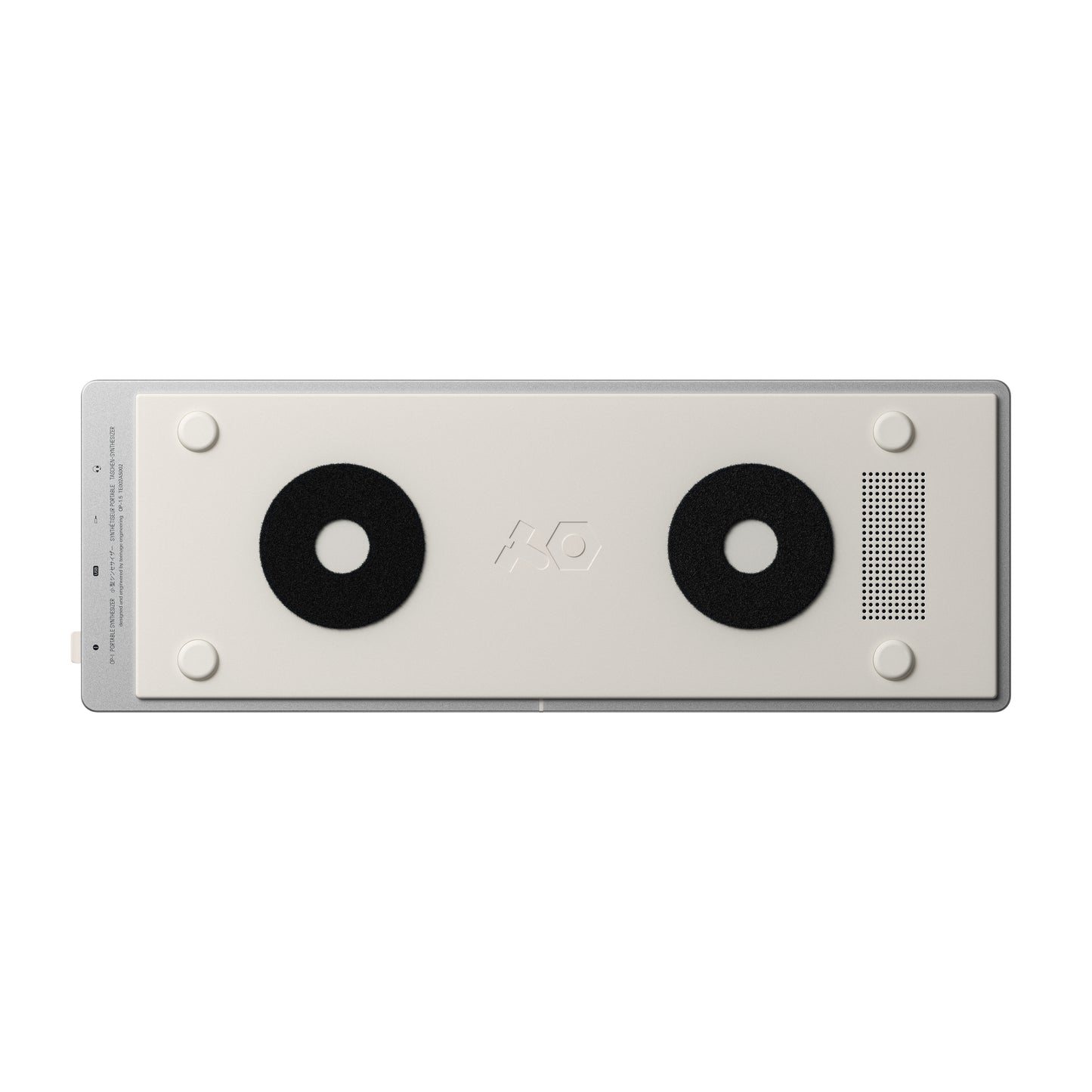

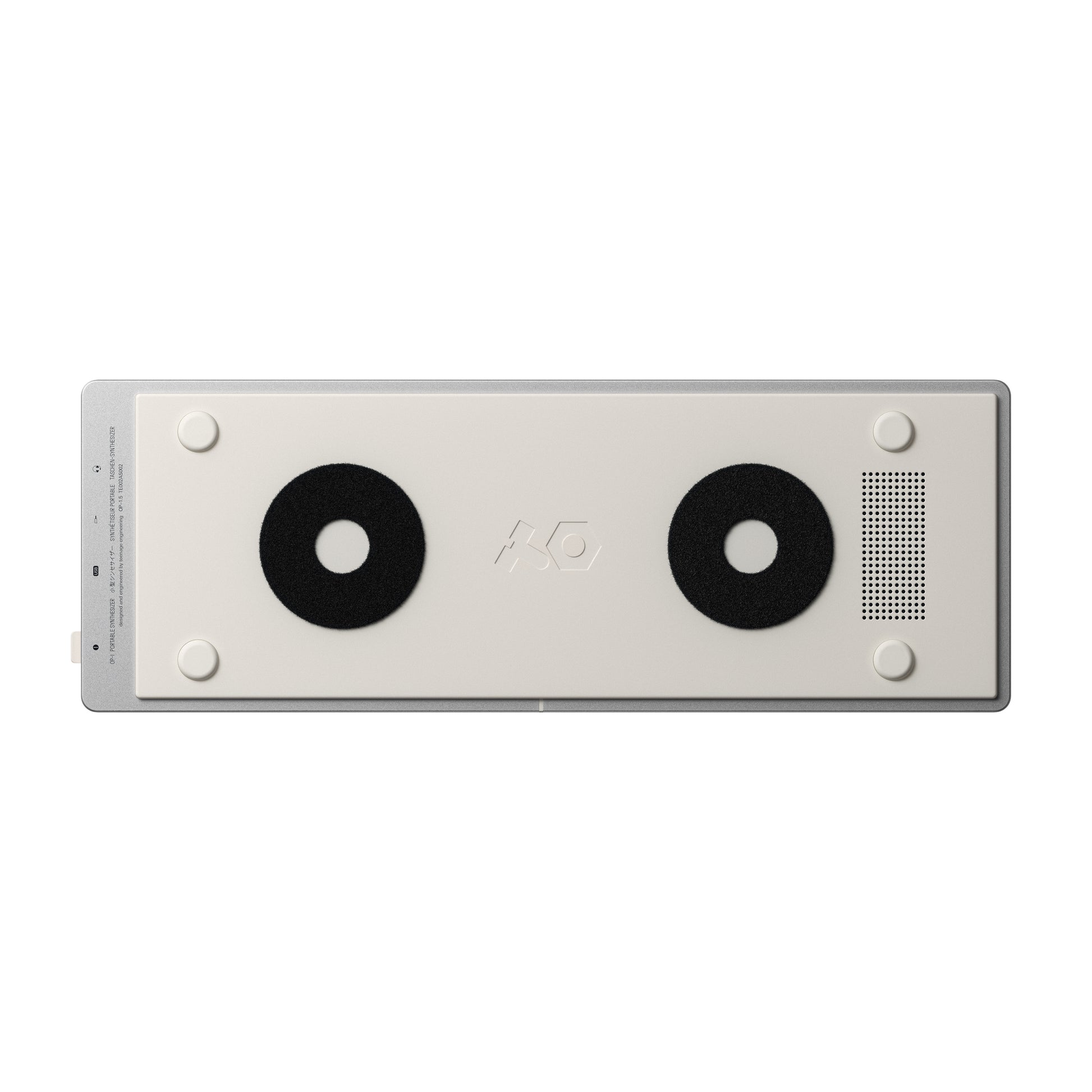

• Dual velcro® back fasteners
• Twenty new preset synth patches
• Zoomed in sample editing
• Bluetooth low energy for wireless midi
• Pro quality 32-bit audio throughout the signal chain
• Stereo mixdown from synth and drum to stereo tape tracks
• Stereo drum sampler engine
• Improved drum envelope for better transient control
• Drum sample stacking
• Stereo audio input processing
• Improved tape looping
• Stereo synth sampler engine
• Over 160 minutes of sample storage
• 4-pole audio jack for headset mic support
• Configurable MIDI filtering
• New volume setting per patch
• Afterburner ground loop noise suppressor
• Built-in user guide
• Dual BLE antennas for stable wireless performance
• New and improved built-in microphone
• Added encoder click functionality
• Tape name editor
• New external velocity LFO
• New range of custom accessories
• Up to 500 user patches
• Adjustable pitch bend range
• Automatic headphone impedance adjustment
• BLE advertising toggle
• BLE central for connecting controllers
• BLE connection list view
• Built-in FM radio transmission
• Charge power status LEDs
• Click to hold sequencer
• Completely reworked ui
• Custom MIDI settings for connected devices
• Custom volume encoder with higher resolution
• Detailed country settings for radio
• Dual role USB type c connector
• Ergonomic power switch
• Ultra-fidelity headphone output
• High resolution accelerometer
• Improved averaging for a more reliable tap tempo
• Improved equalizer with higher resolution and smoother interpolation
• Improved input signal to LFO with smoother envelope
• Adjustable MIDI filtering
• Refined original patches
• Increase to 256 MB internal memory
• Improved envelope follow in nitro effect
• More random LFO target parameters
• Increased toMBola simulation accuracy
• Mtp content management
• New custom USB cable
• New factory sequencer presets
• New font
• New form factor
• New high resolution vu led meter
• New hold sequencer
• New keyboard module
• Improved line in signal quality
• New metronome sound
• New packaging
• New pan LFO target
• New sawtooth and square LFO shapes
• New sketch image
• Ob–4 compatible using FM tx or wire
• Pop-up info graphics
• Precise master level meters

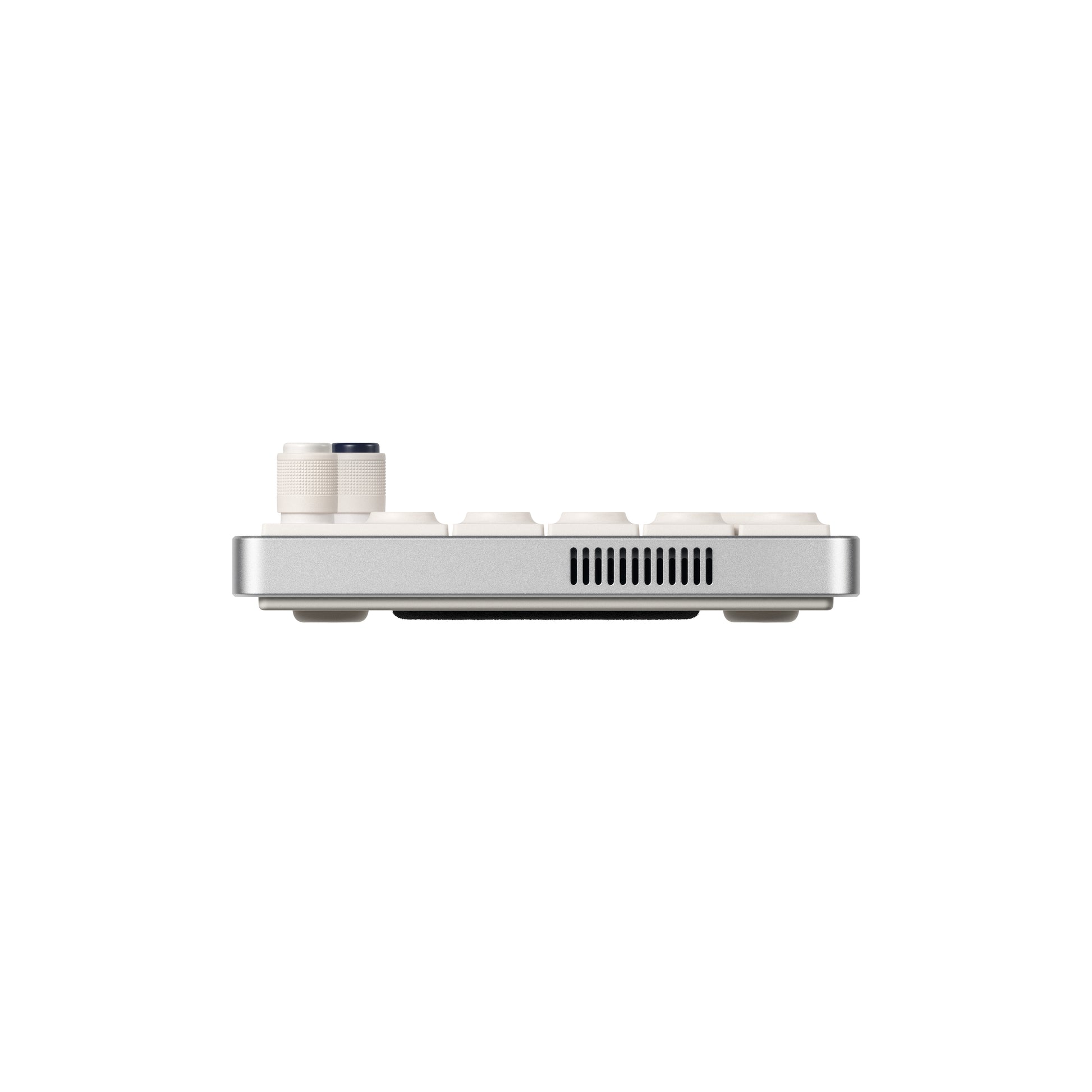

• Refined acoustic side shooting loudspeaker grill
• Save tempo and sync settings with tapes
• Screen brightness control
• Smooth knob interpolation
• Stereo cluster synth engine
• Stereo digital synth engine
• Stereo FM synth engine
• Stereo phase synth engine
• Stereo pulse synth engine
• Stereo string synth engine
• Stereo tape tracks
• Stereo voltage synth engine
• System settings
• USB audio host
• USB audio/MIDI direct connectivity to op–z, tx–6, op–1 and compatible devices
• USB MIDI host
• User patch rename
• Wireless MIDI connectivity to op–z and tx–6

Specifications

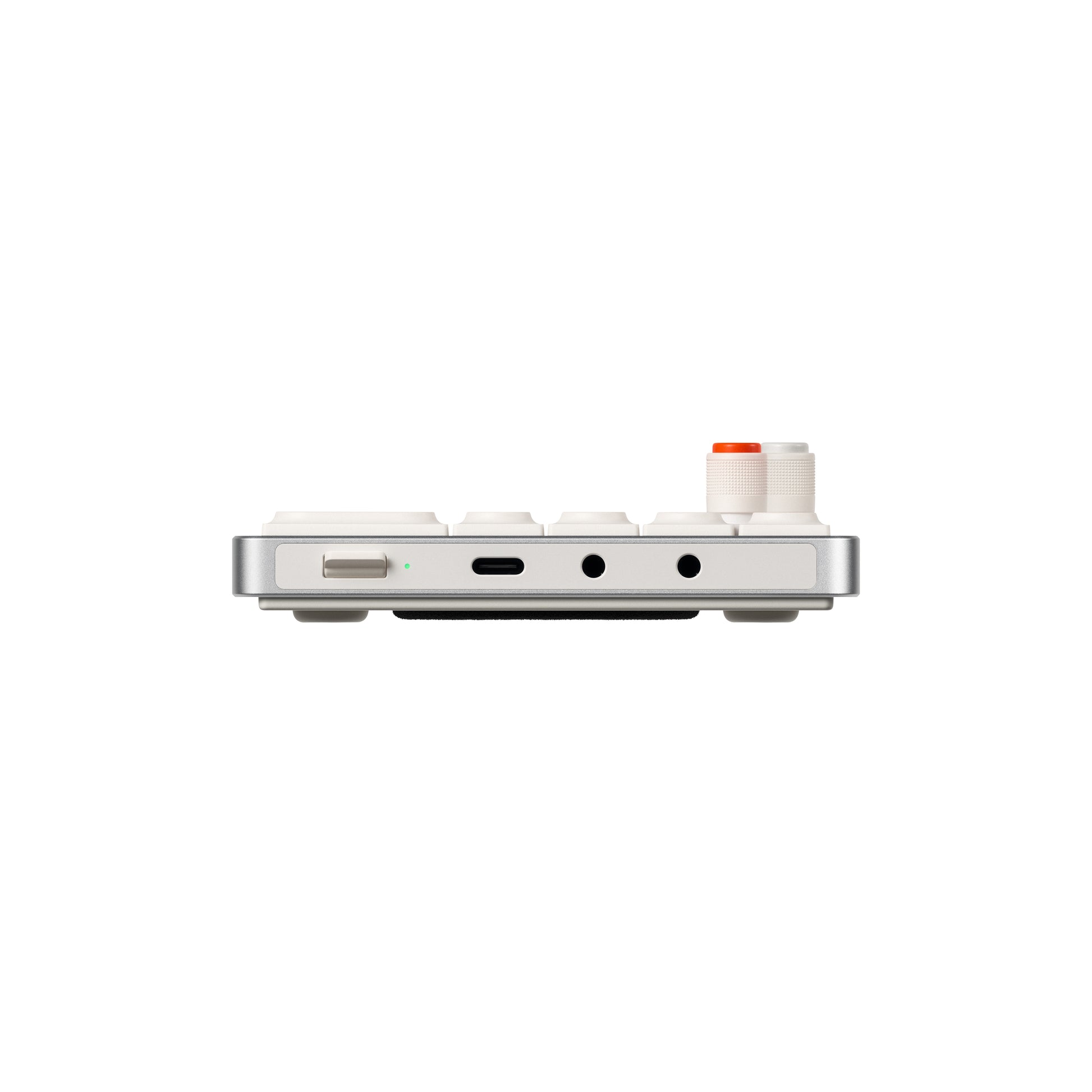

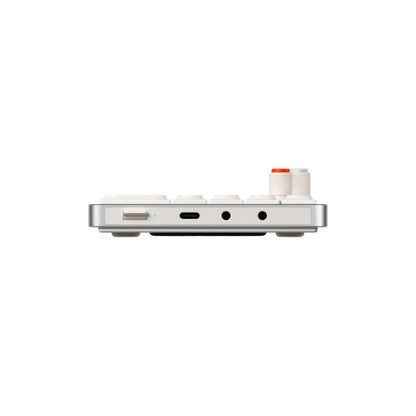

• Analog Connectivity:
  • 3.5mm stereo input jack
  • 3.5mm stereo output jack with headset microphone support
  • USB audio/MIDI host and device
• Audio Input:
  • Impedance: 13kOhm
  • Analog Gain: 0 – 31 dB
  • Max Level: 8 dBu, 2 Vrms
  • SNR: 98dBA (typical)
• Audio Output:
  • Max Level: 8 dBu, 2 Vrms
  • SNR: 124 dBA (typical)
• Bluetooth Connectivity:
  • Bluetooth MIDI
  • Bluetooth low energy radio
• Battery Life: 24 hours
• Display: High-resolution flush colour screen

Additional Accessories:

• TP-7 Field Recorder (also in black)
• CM-15 Field Microphone (also in black)

• TX-6 Field Mixer (also in black)

• Field Cable USB-C

• Field Cable RCA

• Stereo Splitter Cable

• Field Sync Cable Kit

• Field Textile Cable 1.2m

• Audio Cable Right Angle

• Audio Cable Curly Long

• Audio Cable 750mm

• MC-3 Sync Cable (3-Pack)

• M-1 Personal Monitor Headphones
