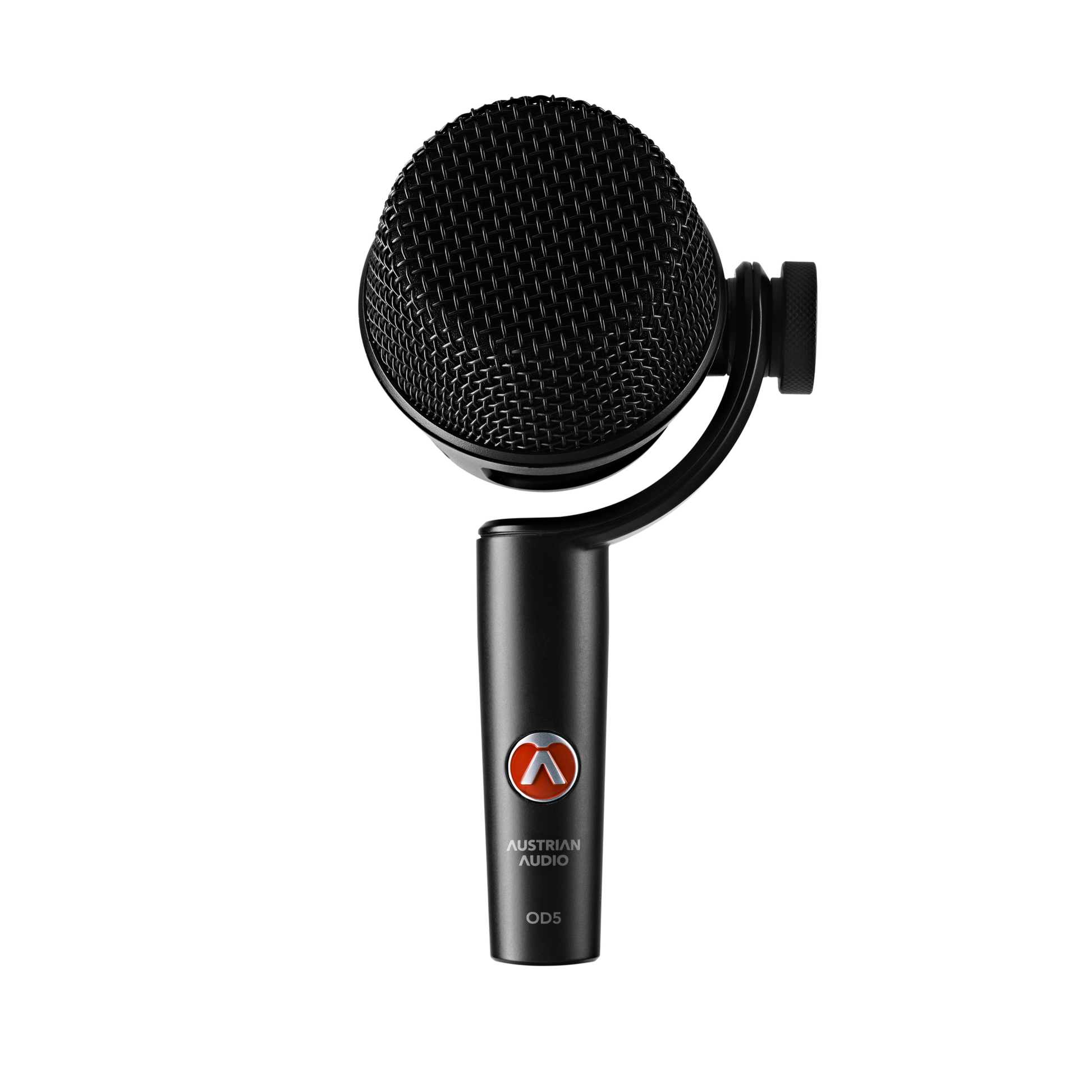

OD5 Microphone

OD5 Instrument Mic

The Austrian Audio OD5 combines the robust sound quality and stability of active dynamic technology with a versatile instrument microphone design. Featuring the handmade ODC50 capsule and active circuitry, the OD5 delivers focused, noise-free sound with excellent headroom and high SPL resistance, whether tracking in the studio or running long cables to the stage.

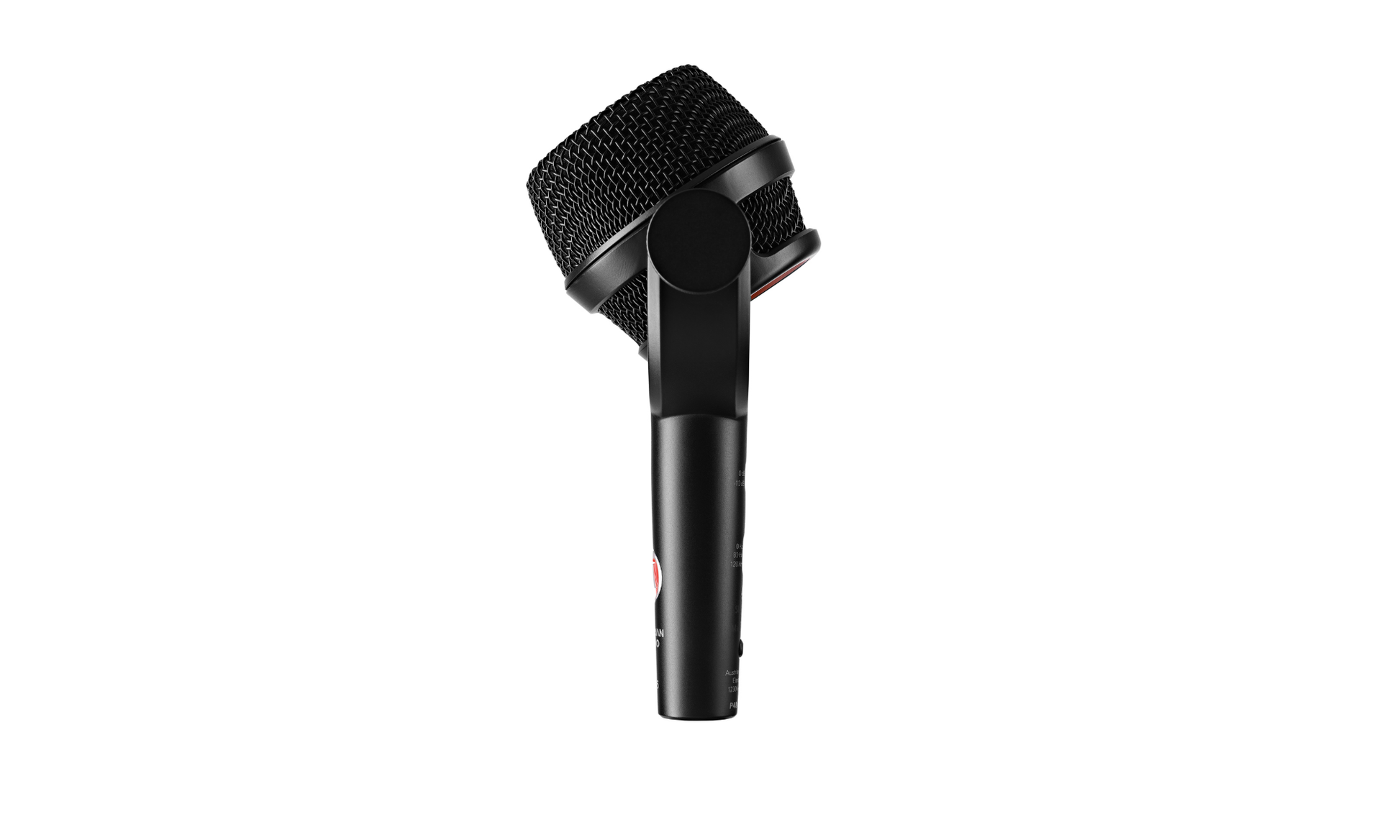

220° Swivel Joint

Designed for precision placement, the OD5 features a unique swivel joint with 220° rotation, allowing you to position the microphone exactly where you need it. Its rugged metal enclosure ensures the mic stays securely in place and continues performing reliably—even after years of heavy use. Handmade in Vienna, the OD5 provides premium sound quality and durability from every angle.

Key Features

• Active dynamic ODC50 capsule for clear, focused instrument sound
• Handles high SPL with ample headroom
• 220º swivel joint for precise microphone placement
• Rugged metal housing built for durability and touring
• Ideal for studio recording and live stage applications
• Active circuitry ensures consistent, noise-free performance
• Handmade in Vienna, Austria for superior quality

Technical Specs

• Polar pattern: Cardioid
• Frequency range: 20 Hz – 18 kHz
• Sensitivity: 6.7 mV/Pa
• Equivalent noise level: 21 dB SPL (A)
• Max. SPL: 151 dB SPL (>160 dB SPL with pad)
• Low cut filter: 80 Hz (2nd order), 120 Hz (2nd order)
• Pad: -10 dB
• Impedance: 275 Ω (symmetrical)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 1.5 mA)
• Main connector: XLR 3 pin
• Dimensions: 147 x 82 x 54 mm
• Weight: 265 g

In The Box

• OD5 Microphone
• OCH8 Mic clip
• Carry case

Additional Accessories

• DPH12 Drum Holder
