OC818 Dual Set Plus

OC818 Professional Dual Mic Set

The OC818 Dual Set Plus is a matched stereo pair of large-diaphragm condenser microphones, designed for professional studios and demanding recording environments. Built around the acclaimed CKR12 ceramic capsule, each microphone delivers a natural, open sound with exceptional consistency — matched within 1 dB for perfect stereo capture.

Both microphones feature four selectable polar patterns (cardioid, hypercardioid, omni and figure-8), dual-cardioid mode, switchable pads (0, –10, –20 dB), and two analogue high-pass filters. Thanks to the dual output design, engineers can capture the rear-facing diaphragm discretely via mini XLR, enabling advanced polar pattern sculpting in post-production.

Bluetooth Control

With OCR8 Bluetooth compatibility and the Polarpilot app, you can wirelessly control polar patterns, pads and filters in real time. The included software tools expand creative possibilities even further:

• PolarDesigner: Craft polar responses across multiple frequency bands.
• StereoCreator: Select and adjust stereo recording techniques such as X/Y, M/S or Blumlein.
• AmbiCreator: Create ambisonic B-format recordings with the matched pair.

Key Features

• Matched OC818 large-diaphragm condenser microphones
• Dual-diaphragm CKR12 ceramic capsules
• Four polar patterns + dual-cardioid mode
• Dual analogue outputs for creative post-processing
• Selectable pads and filters

• Bundled with full studio accessory kit
• Designed and handmade in Vienna

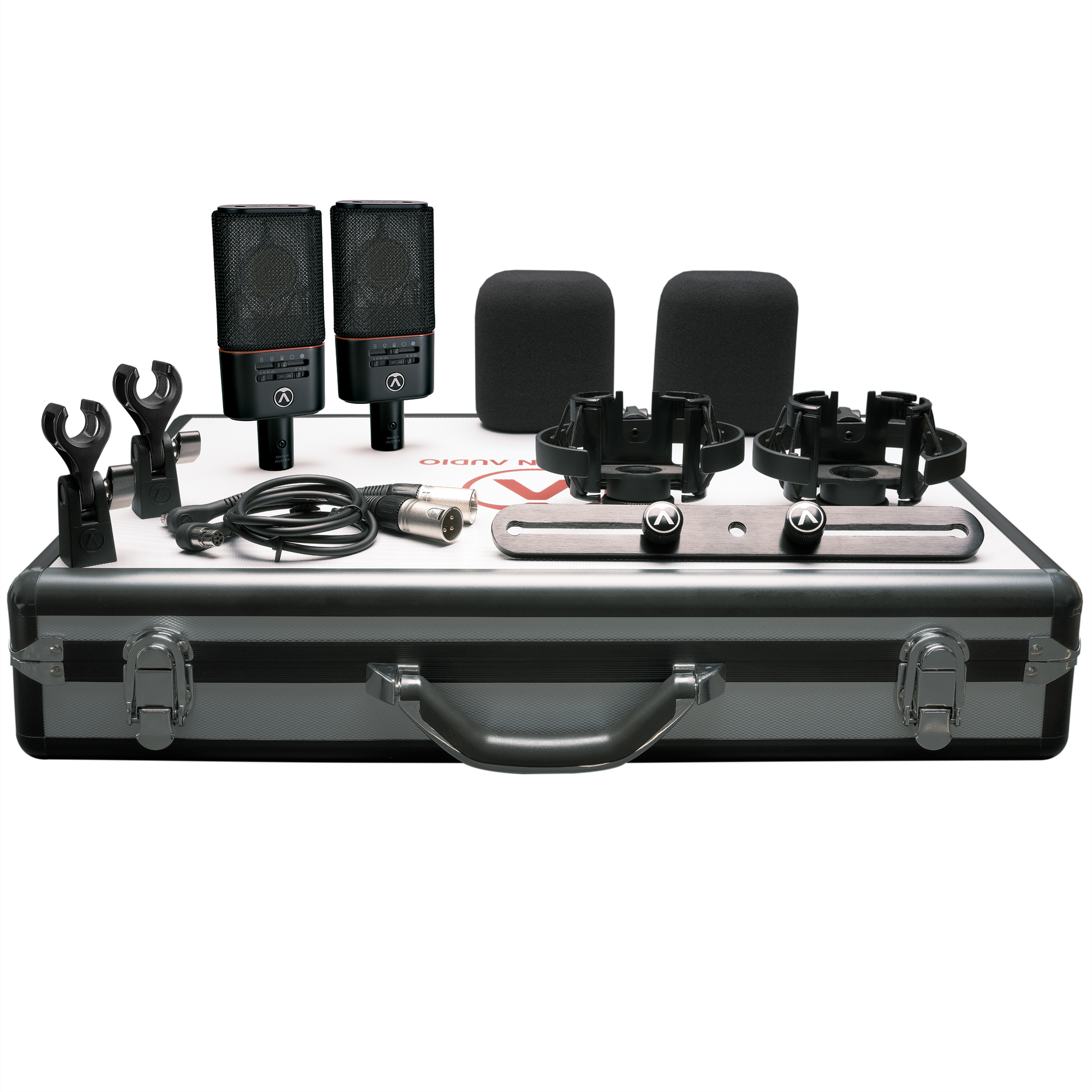

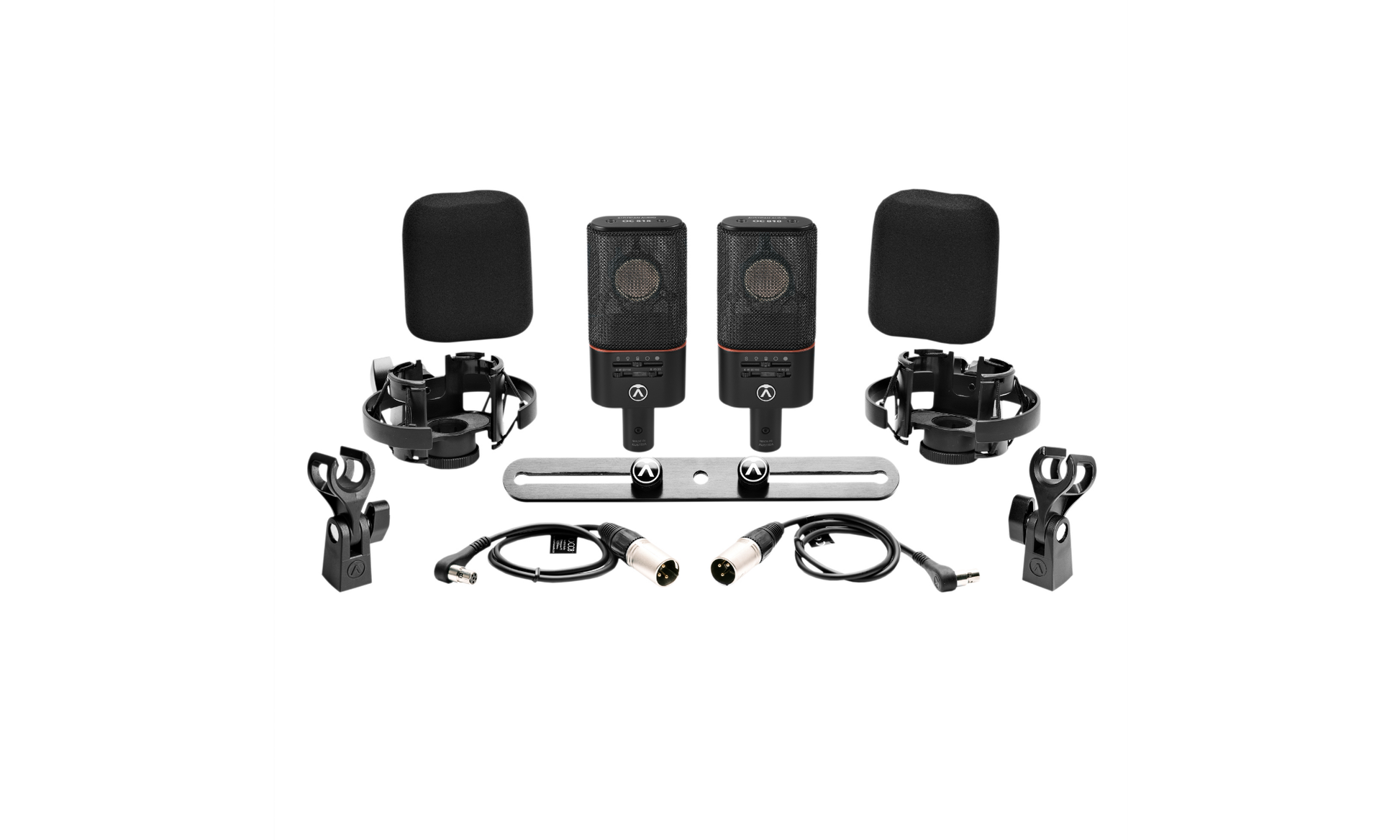

In The Box

• 2x OC818 microphones

• 2x OCC mini-XLR
• 2x OCW8 windshield
• 2x OCH8 mic clip
• 2x OCS8 shockmount
• 1x SB1 stereo bar
• 1x OCDC1 dual case

Additional Accessories

• OCR8 Bluetooth Remote
• OCP8 Pop Filter

Technical Specs (each mic)

• Polar patterns: Cardioid, Omnidirectional, Figure-8, Hypercardioid & preset/custom programmable
• Frequency range: 20 Hz - 20 kHz
• Sensitivity (all directions): 13 mV/Pa
• Equivalent noise level: 9 dB SPL (A)
• Max SPL: 148 dB SPL (158 dB SPL)
• Low Cut filter: 40 Hz, 80 Hz, 160 Hz
• Impedance: 275 Ω (2x)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 2.2 mA)
• Main Connector: XLR 3 pin
• Dimensions: 157 x 63 x 36 mm
• Weight: 360g
