OC818 Studio Set

OC818 Professional Condenser

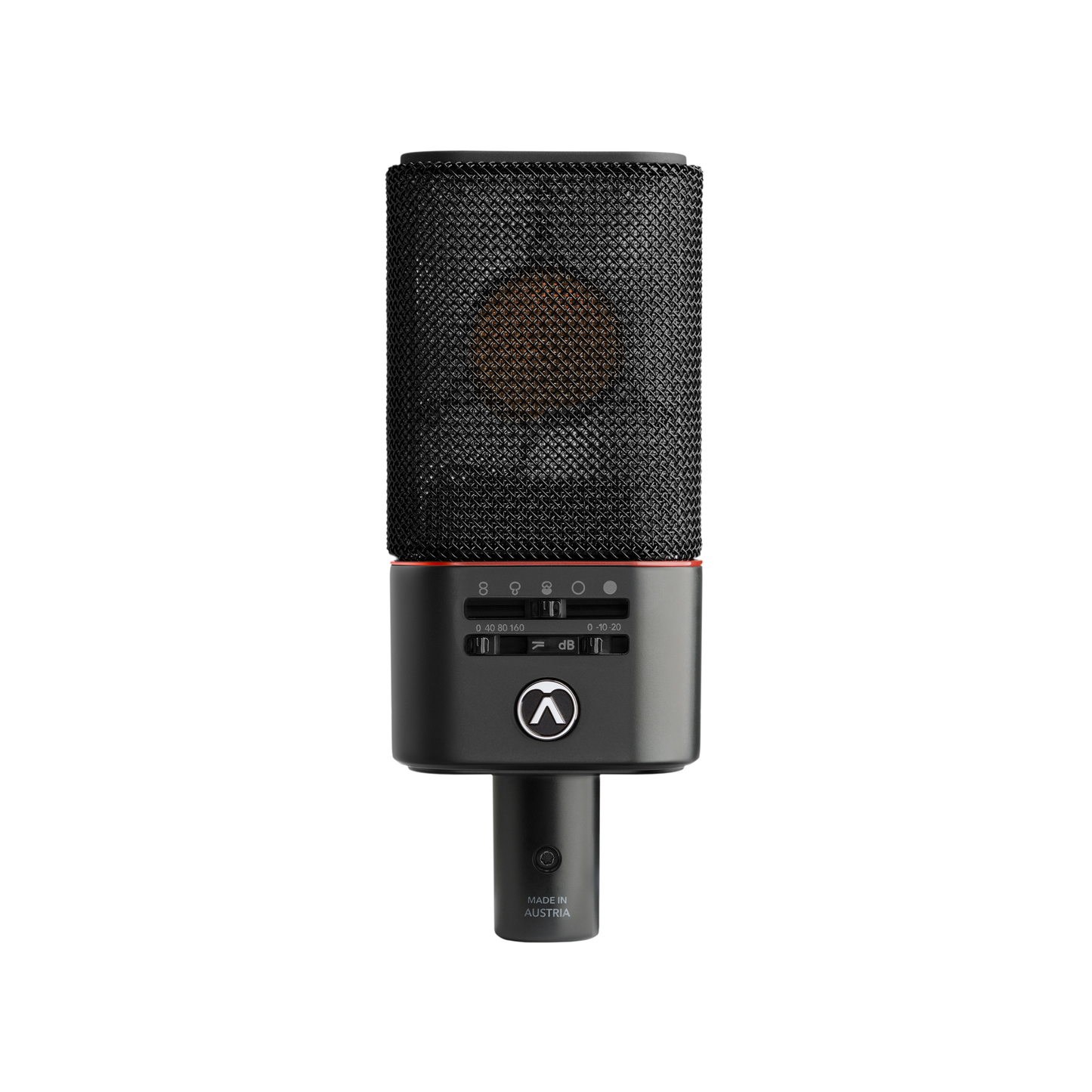

The OC818 is a professional large-diaphragm condenser microphone, designed and handmade in Vienna for unrivalled versatility in studio and live recording. At its heart is the dual-diaphragm CKR12 ceramic capsule, engineered for stability, consistency and natural sound across all sources.

With four switchable polar patterns (cardioid, hypercardioid, omni and figure-8) plus a preset dual-cardioid mode, the OC818 adapts effortlessly to any recording scenario. Microprocessor control ensures precise polarisation voltages, delivering guaranteed sensitivity and balance across both diaphragms.

Dual Outputs

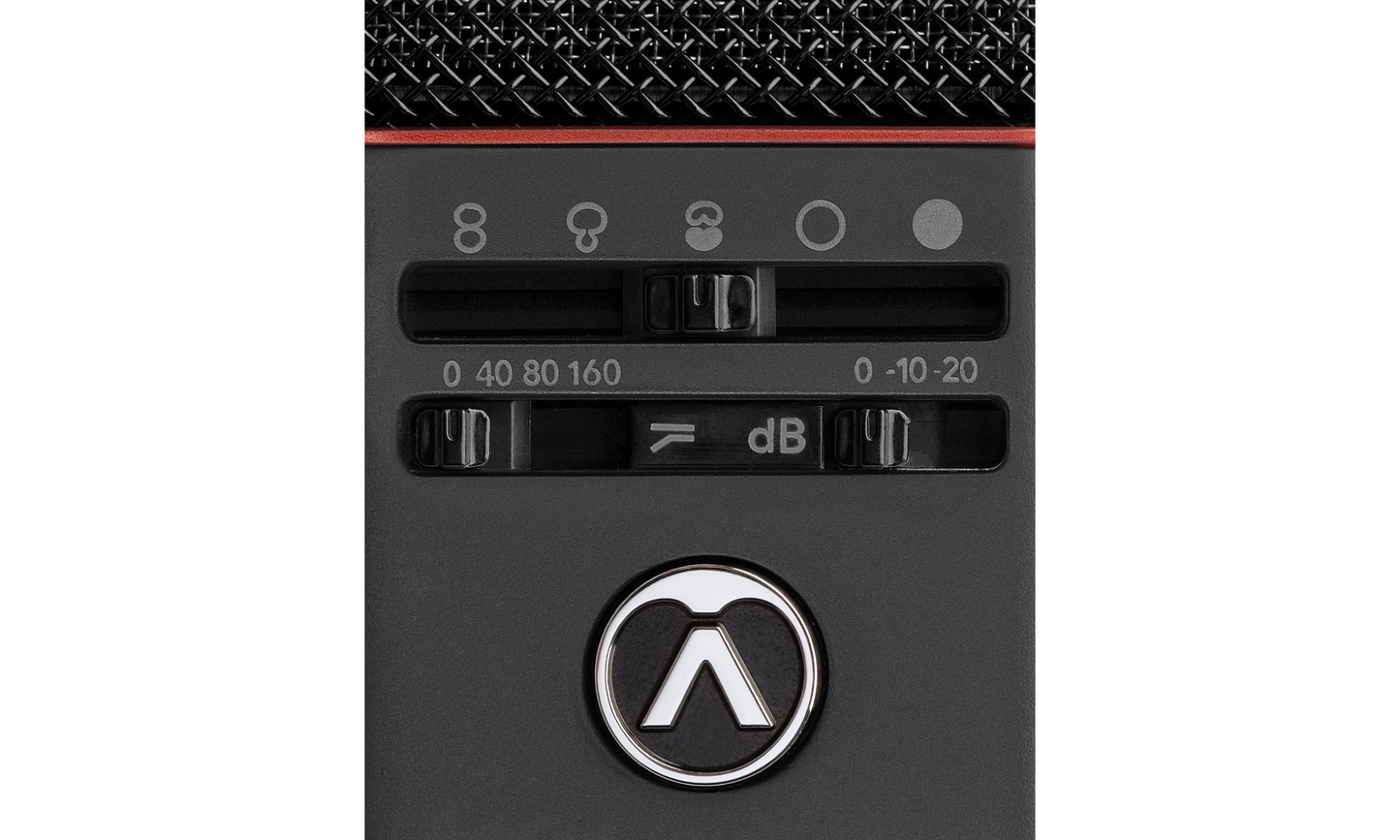

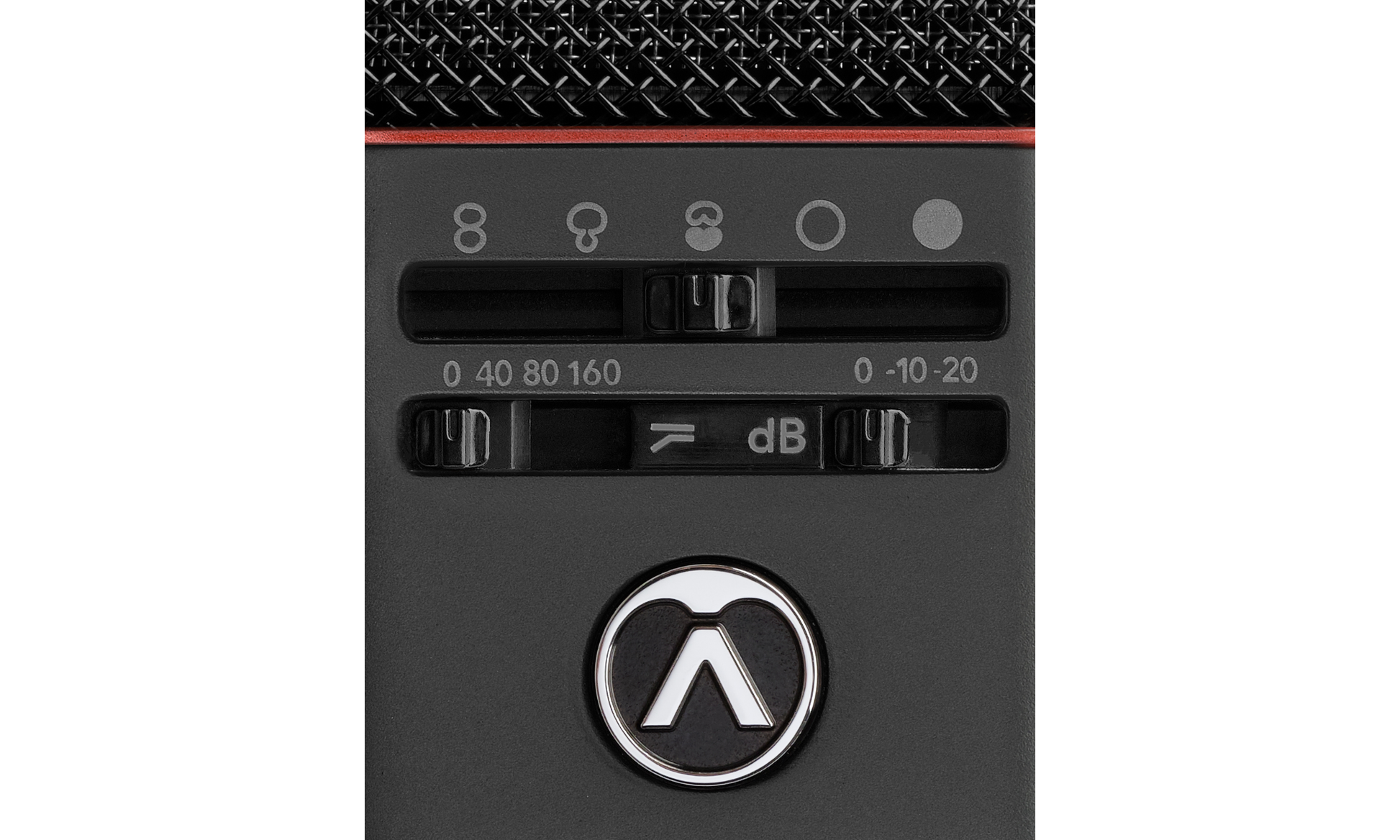

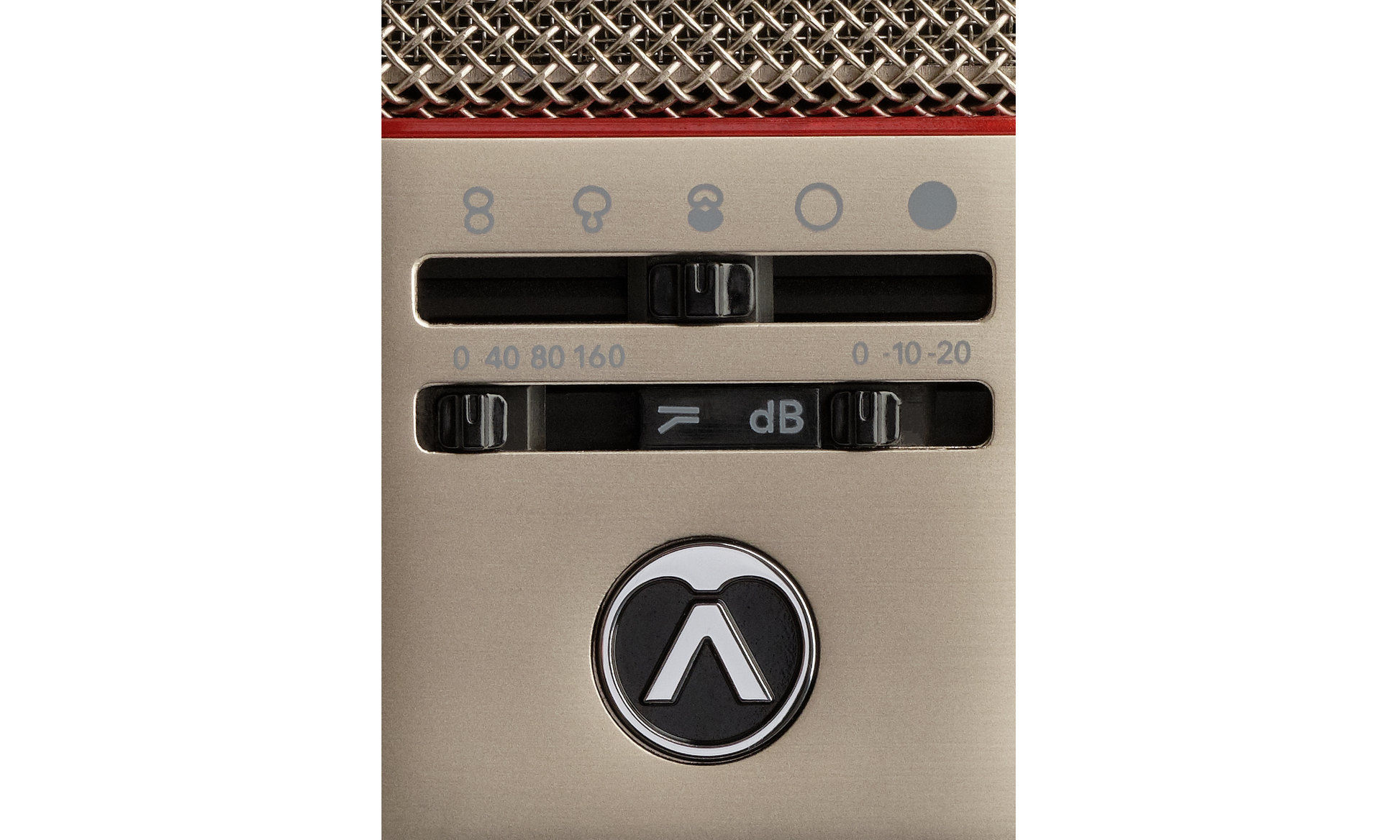

The microphone includes two analogue high-pass filters with three settings, selectable pads (0, –10, –20 dB), and dual outputs — including a discrete balanced output for the rear diaphragm via mini XLR. This unique feature enables dual cardioid mode and advanced stereo techniques.

Bluetooth Control

Expand its potential with OCR8 Bluetooth control and the Polarpilot app, allowing wireless adjustment of polar patterns, pads and filters in real time. Further flexibility comes from the included suite of software tools:

• PolarDesigner: Create custom polar responses across 1–5 crossover bands.
• StereoCreator: Experiment with stereo techniques such as X/Y, M/S and Blumlein.
• AmbiCreator: Generate Ambisonic B-format recordings for VR and immersive audio.

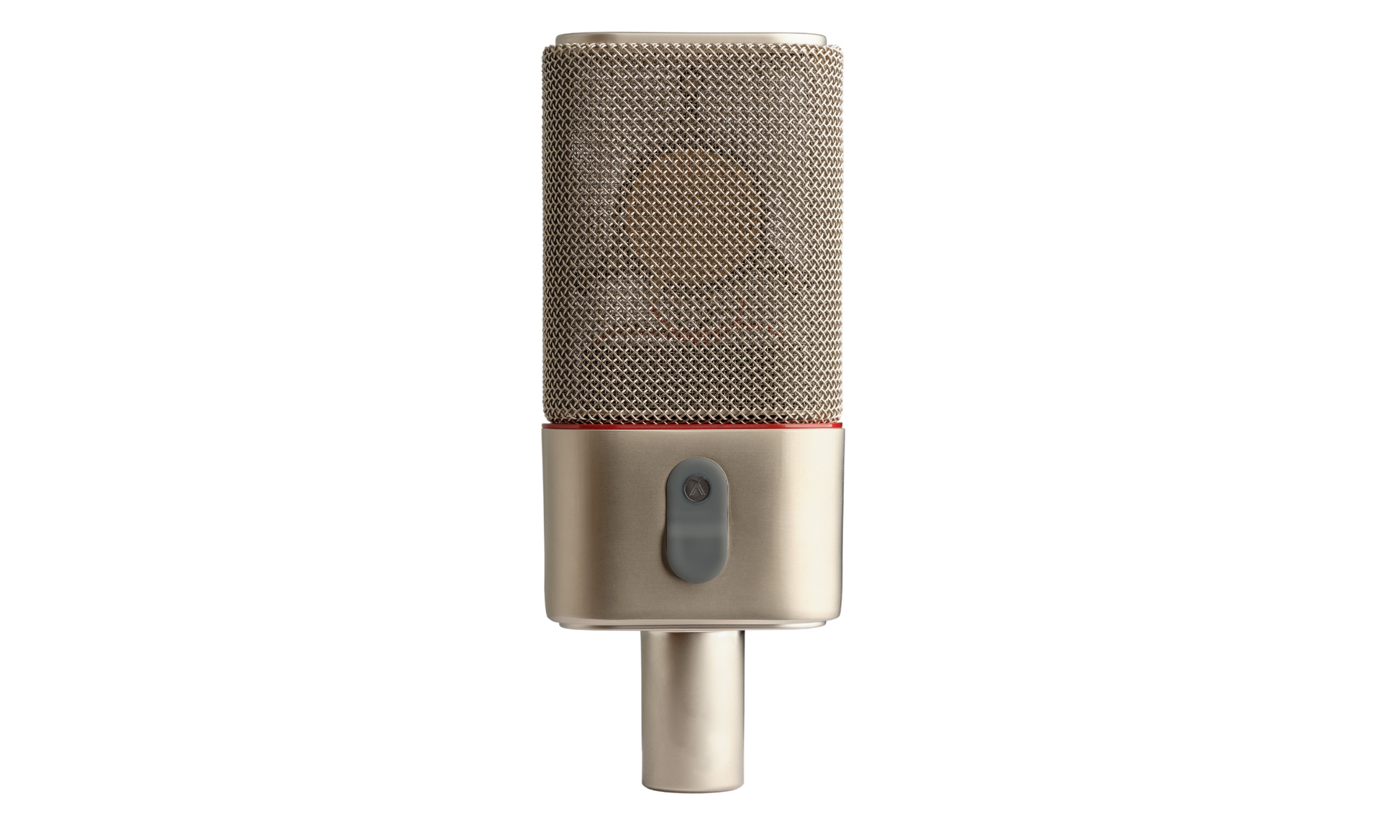

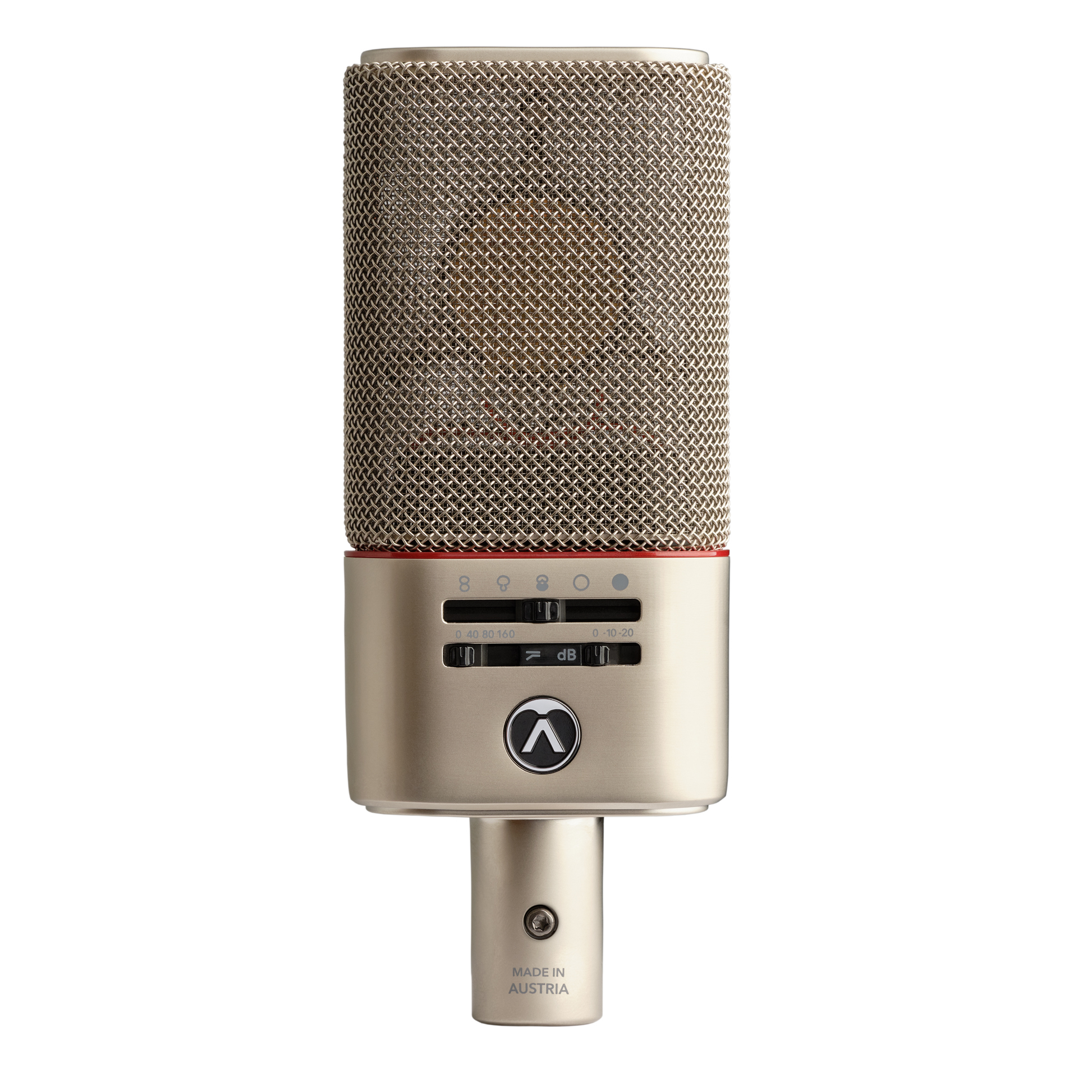

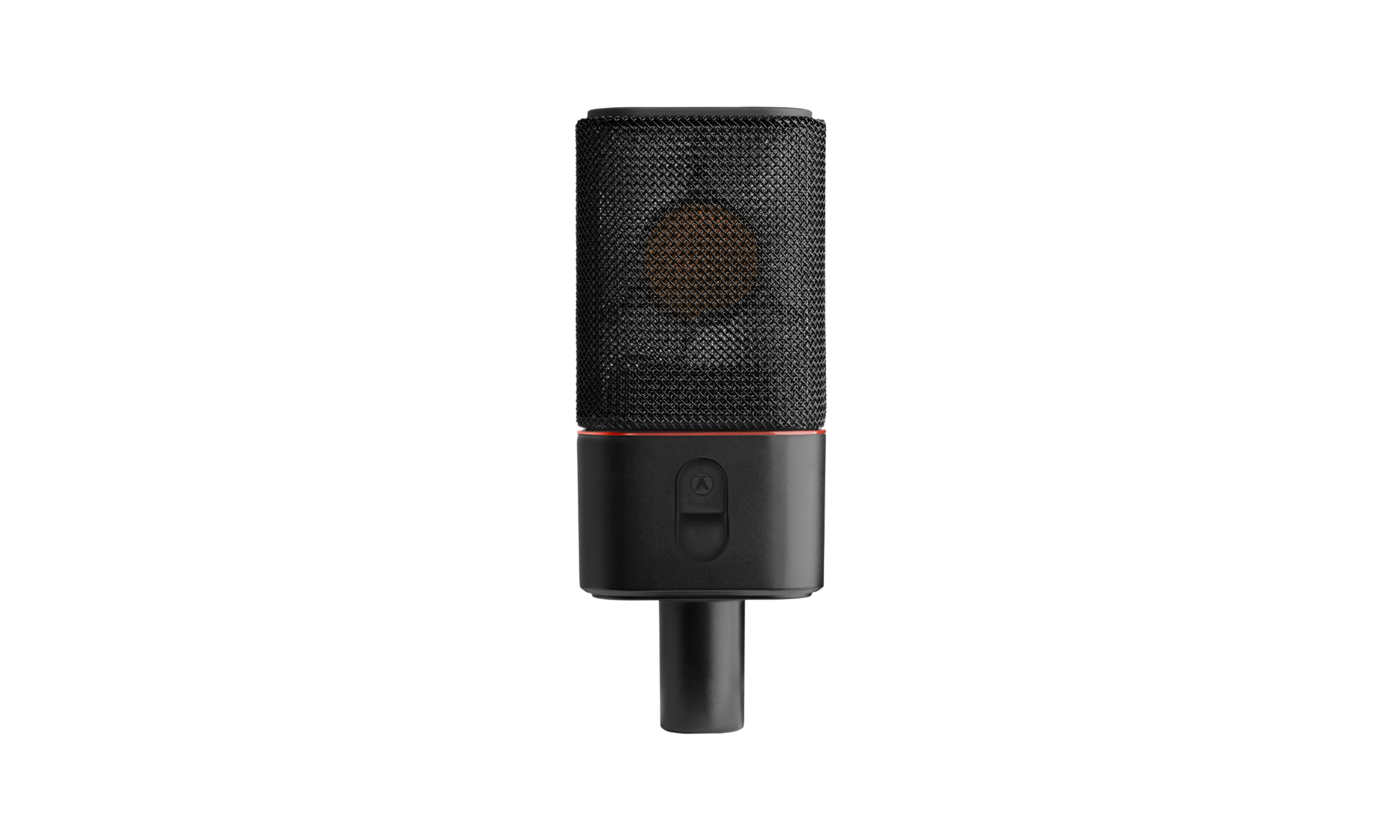

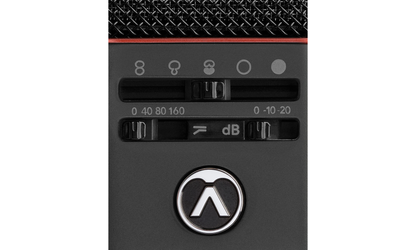

Open Acoustic Technology ensures a pure analogue signal path and an uncoloured, natural sound. Capable of handling SPLs up to 158 dB, the OC818 performs equally well on vocals, acoustic instruments, ensembles, electric guitar, and drums. It is also ideal for stereo and room recording applications. Available in silver or black.

Key Features

• Dual-diaphragm CKR12 ceramic capsule
• Four polar patterns + dual-cardioid preset
• Selectable pads (0, –10, –20 dB)
• Two analogue high-pass filters with 3 settings
• Dual output including rear-diaphragm mini XLR
• OCR8 Bluetooth remote control with Polarpilot app
• PolarDesigner, StereoCreator & AmbiCreator plug-ins included
• Handles 158 dB SPL without distortion
• Designed and handmade in Vienna
• Consistent pairing with other OC series microphones

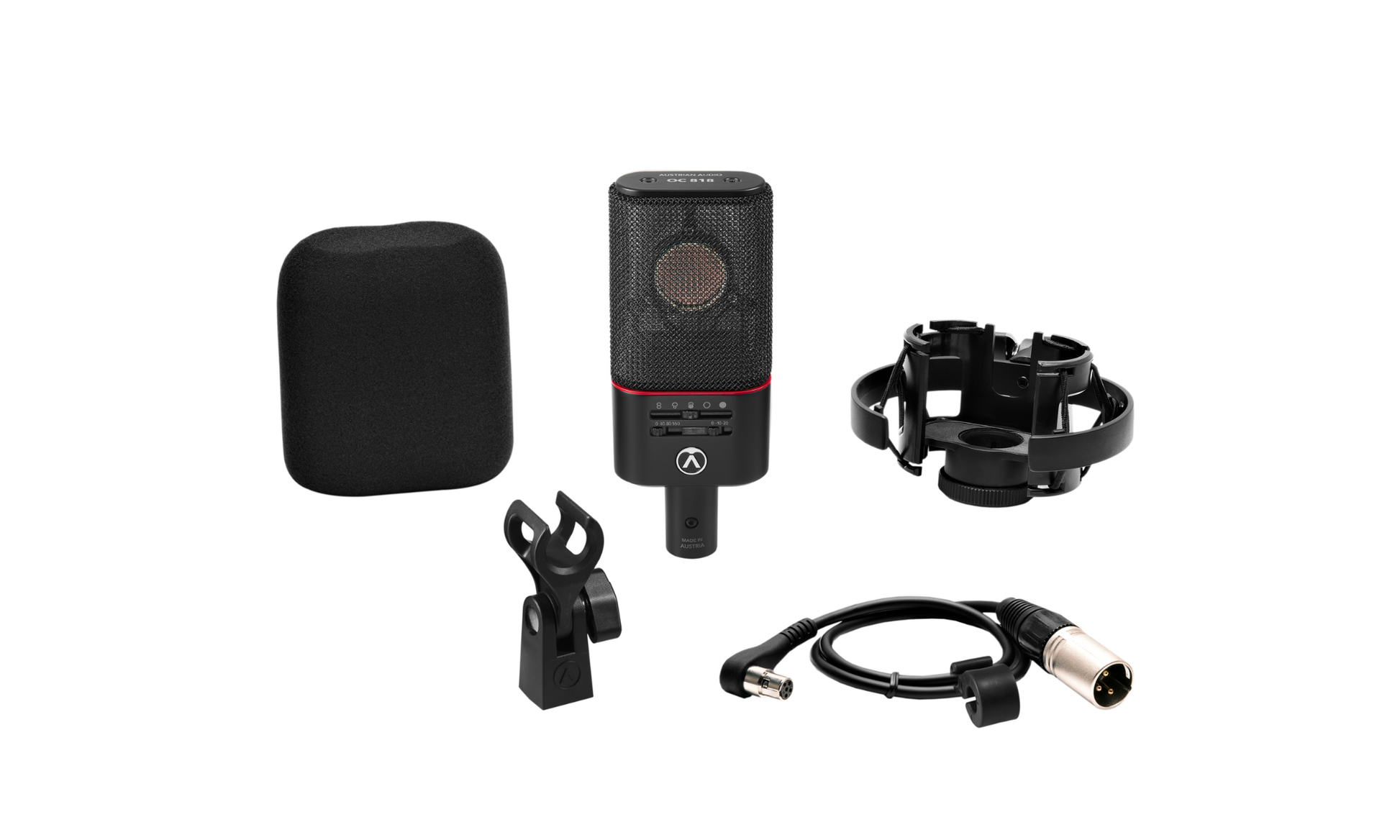

In The Box

• OC818 microphone
• OCC8 mini-XLR

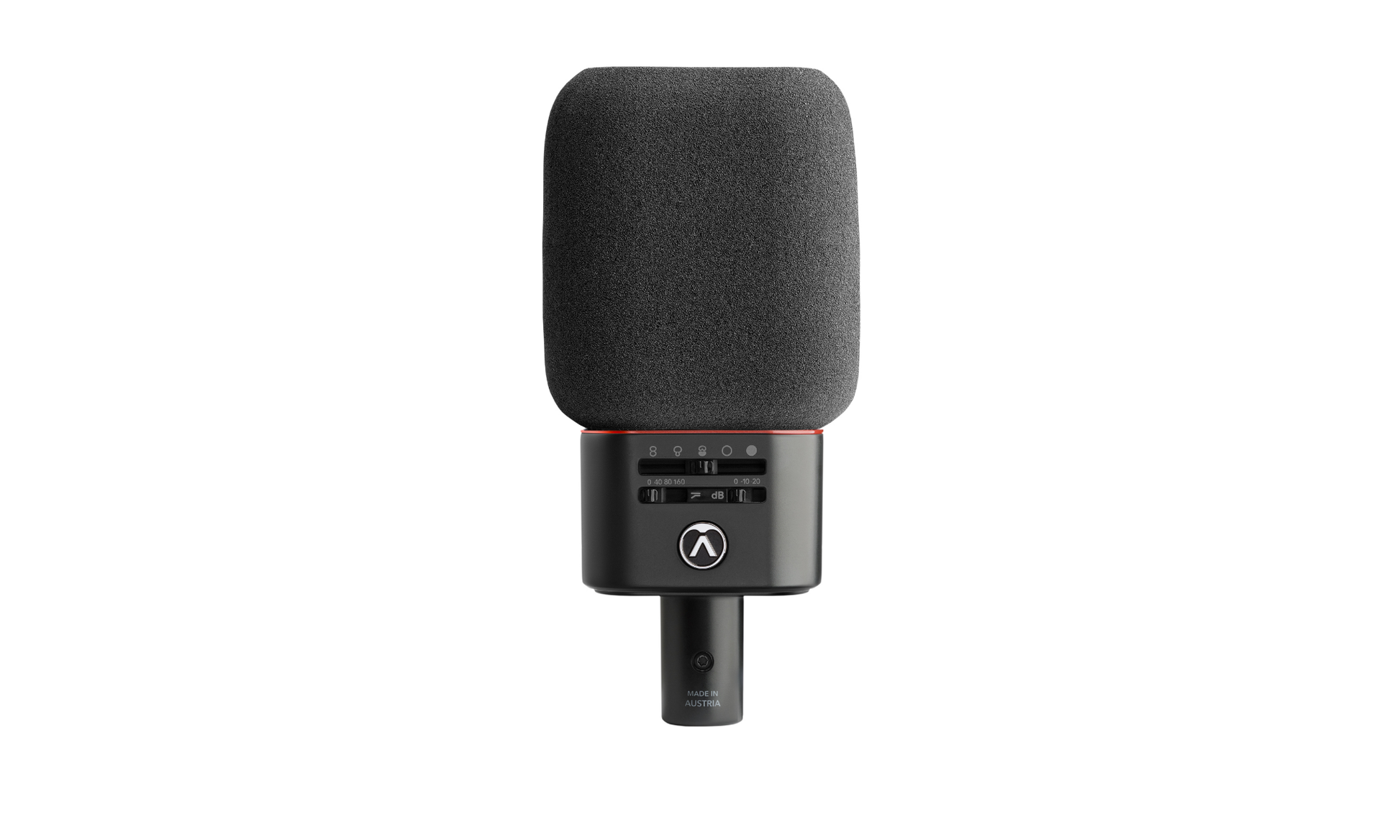

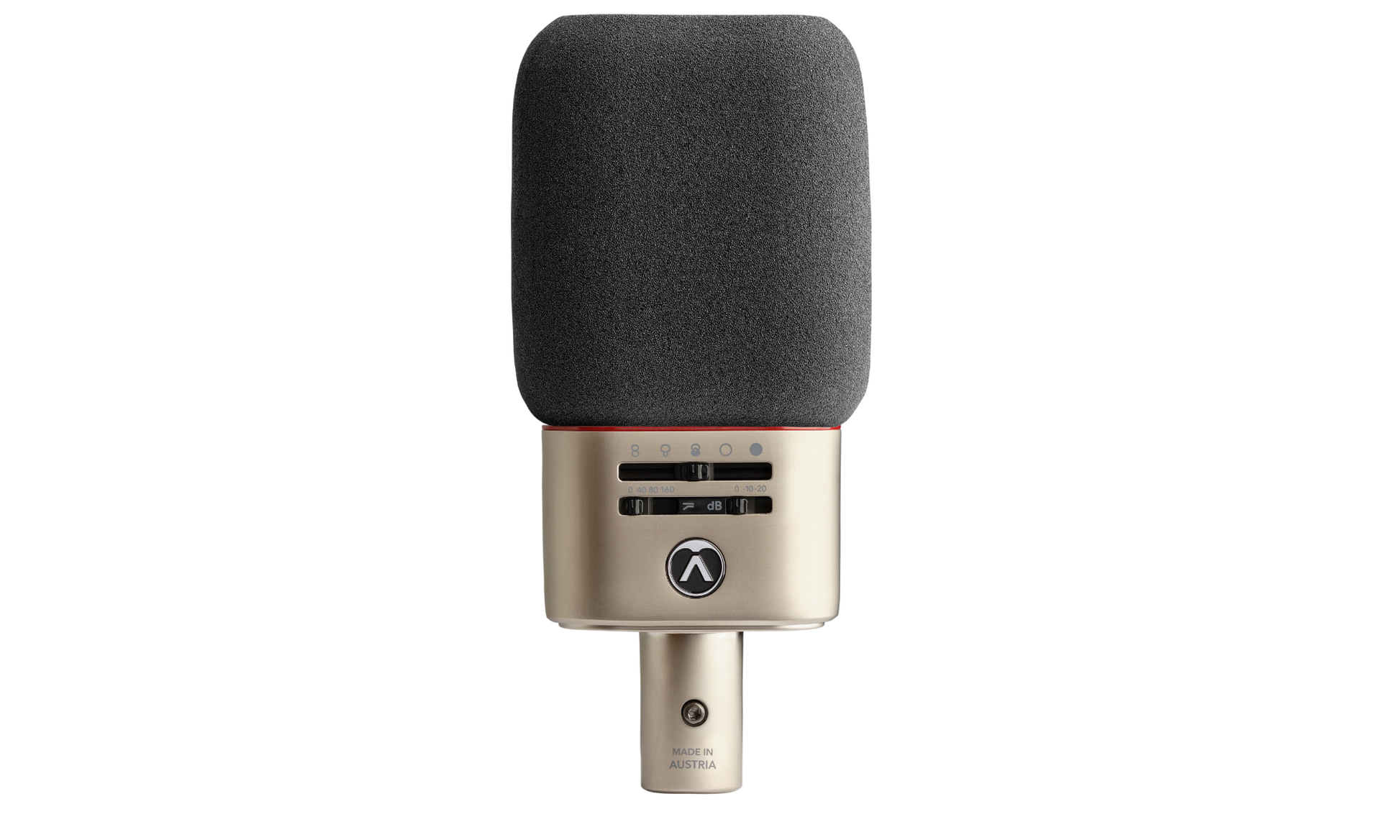

• OCW8 windshield
• OCH8 mic clip

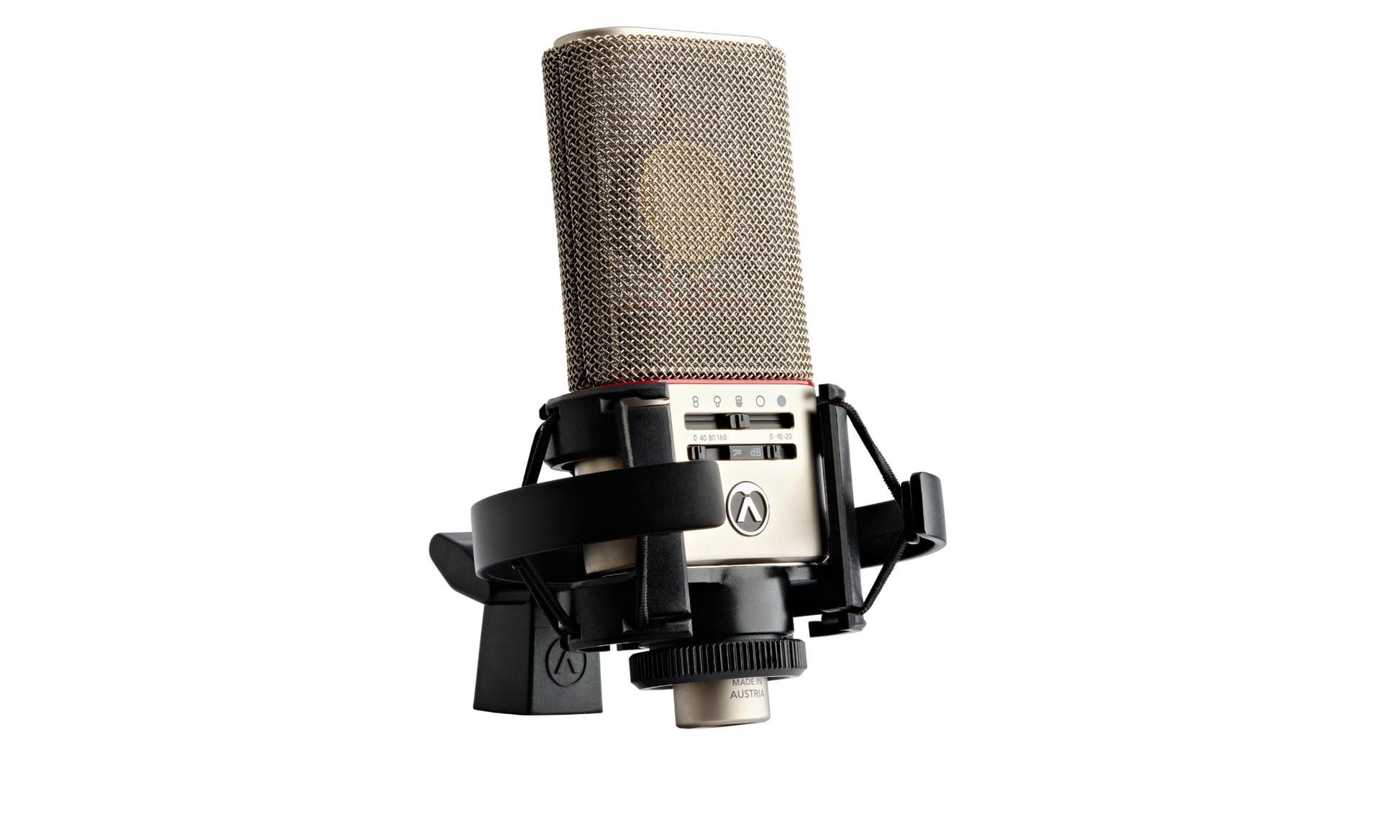

• OCS8 shockmount
• Aluminium hard case

Additional Accessories

• OCR8 Bluetooth Dongle

• SB1 Stereo Bar

• OCP8 Pop Filter
• MZP3 Mic Pouch

Technical Specs

• Polar patterns: Cardioid, Omnidirectional, Figure-8, Hypercardioid & preset/custom programmable
• Frequency range: 20 Hz - 20 kHz
• Sensitivity (all directions): 13 mV/Pa
• Equivalent noise level: 9 dB SPL (A)
• Max SPL: 148 dB SPL (158 dB SPL)
• Low Cut filter: 40 Hz, 80 Hz, 160 Hz
• Impedance: 275 Ω (2x)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 2.2 mA)
• Main Connector: XLR 3 pin
• Dimensions: 157 x 63 x 36 mm
• Weight: 360g
