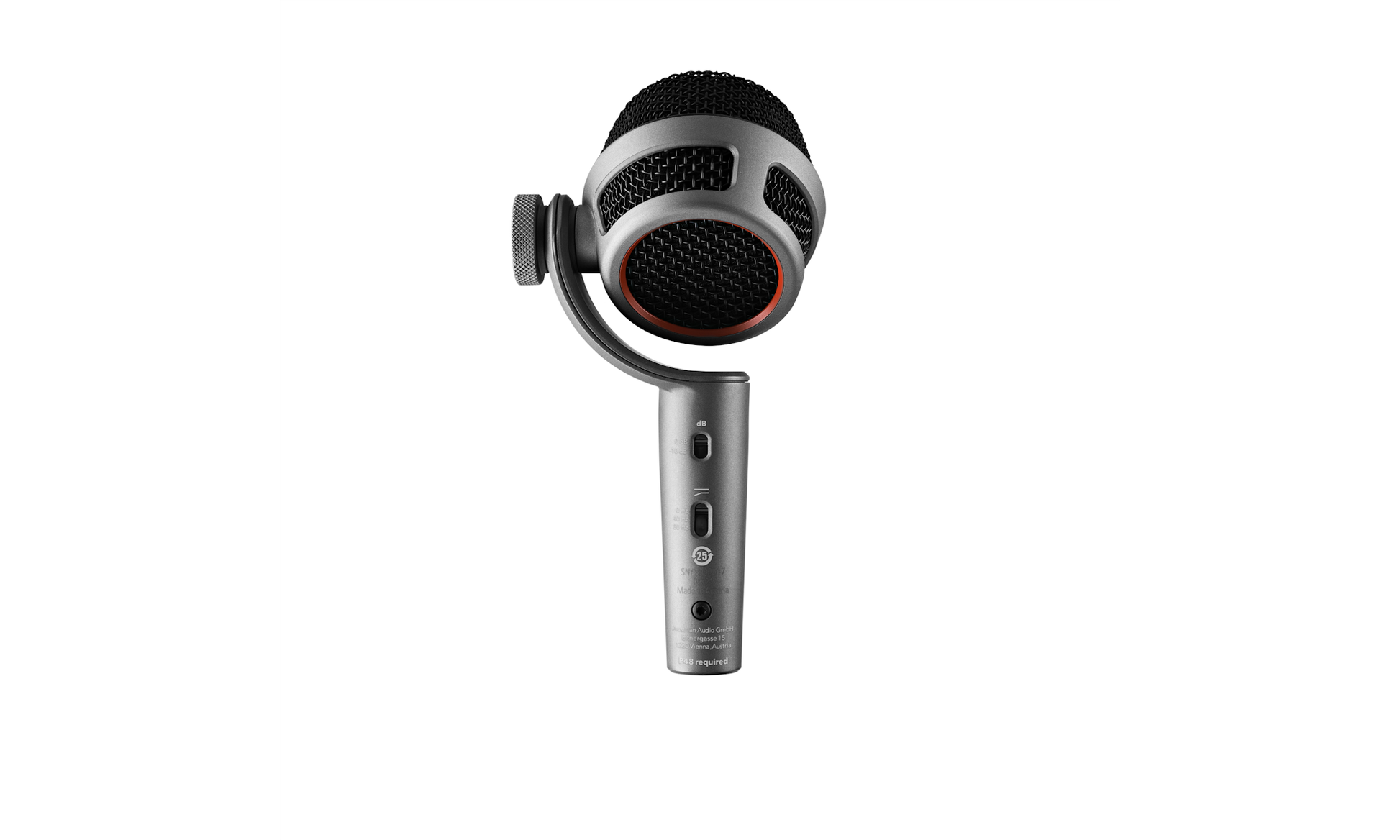

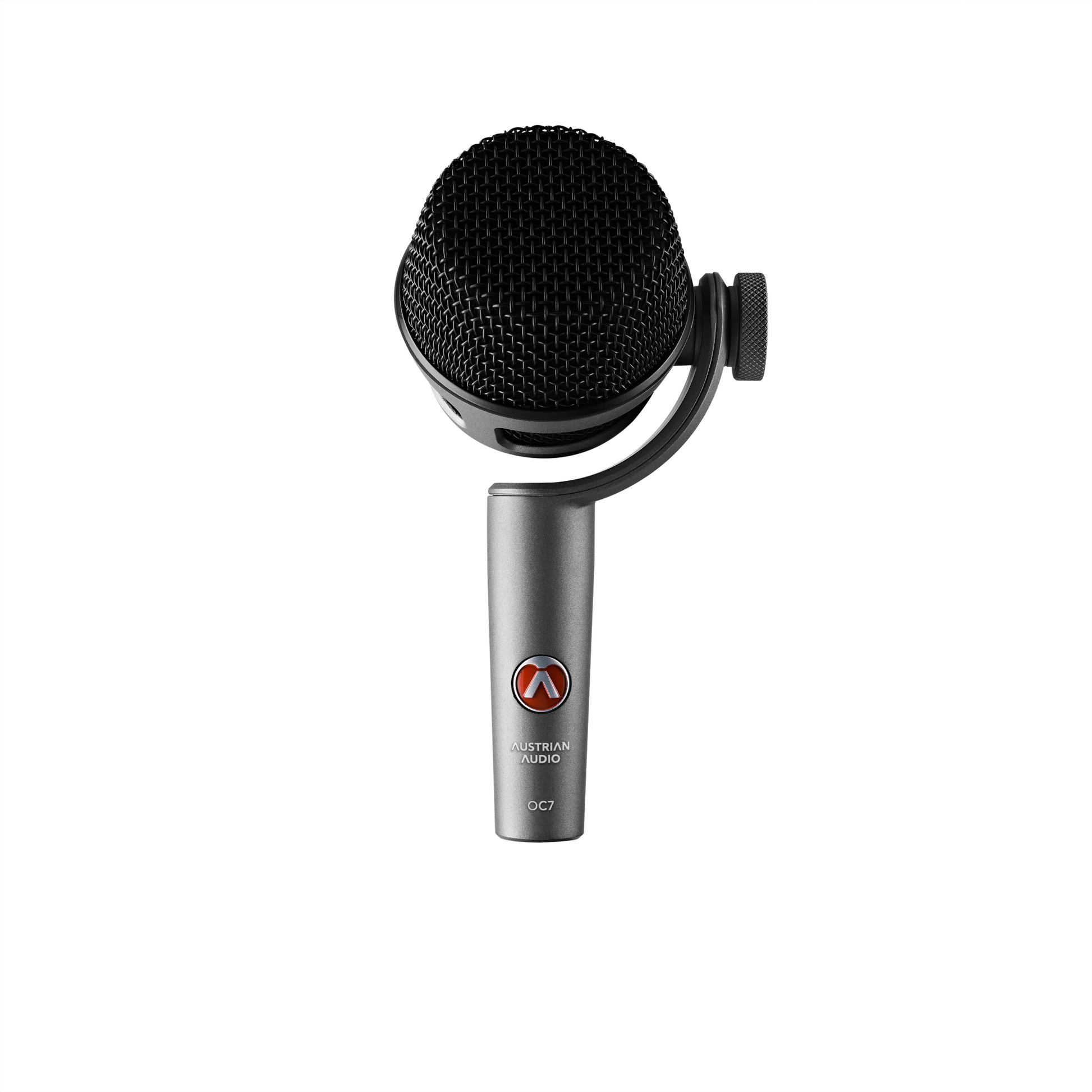

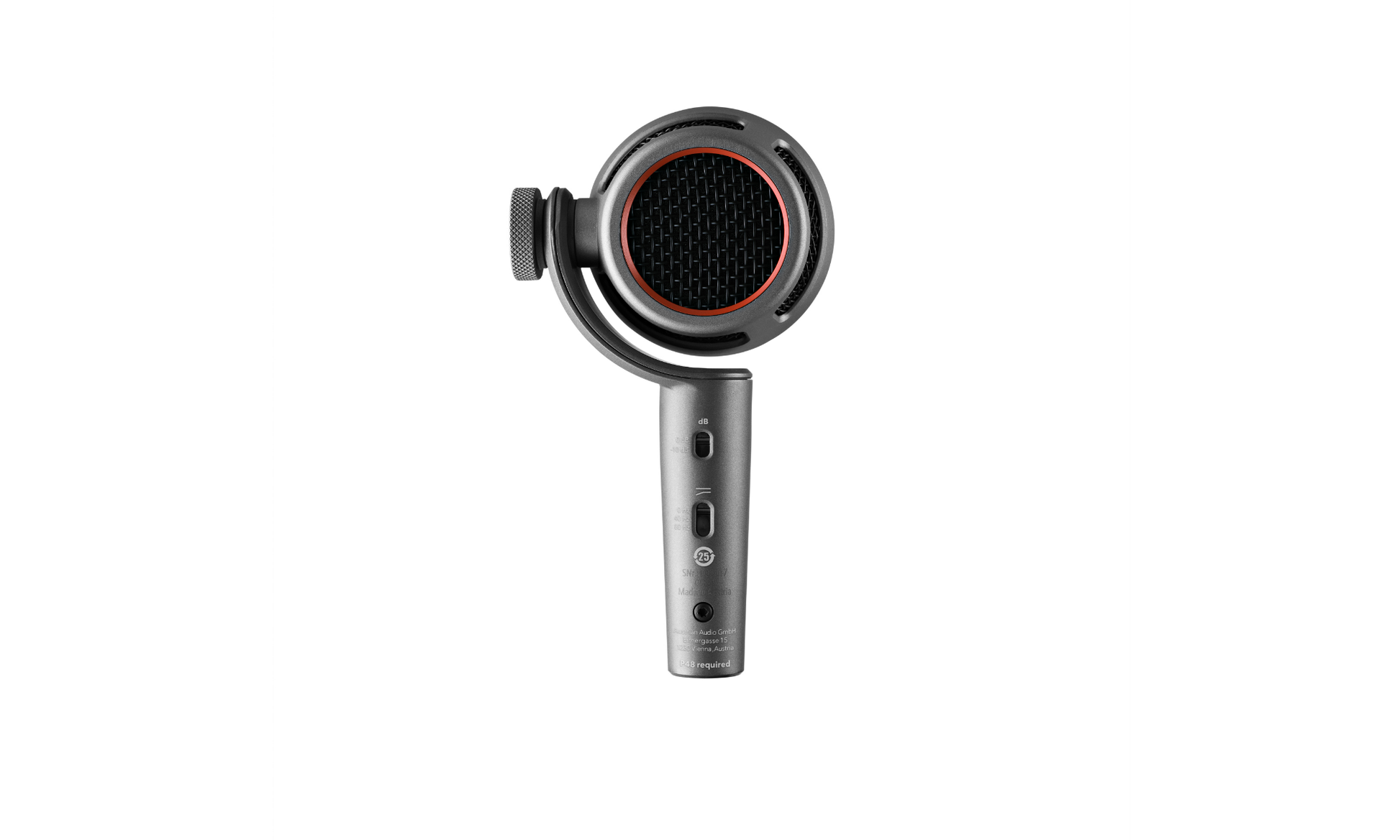

OC7 Microphone

OC7 Instrument Mic

The Austrian Audio OC7 brings the brand’s renowned true condenser technology and signature sound to close-miking instruments, drums, and amplifiers. At its heart is the newly developed OCC7 small-diaphragm condenser capsule, inspired by the legendary CK1. Shaped by the past and built for the future, the OCC7 delivers all the benefits of that classic design updated to meet the demands of today.

With a transformerless output and remarkably linear frequency response, the OC7 handles extremely high sound pressure levels of up to 154 dB SPL (160 dB with pad) without distortion, making it ideal for capturing everything from acoustic guitar to snare drums with clarity and nuance.

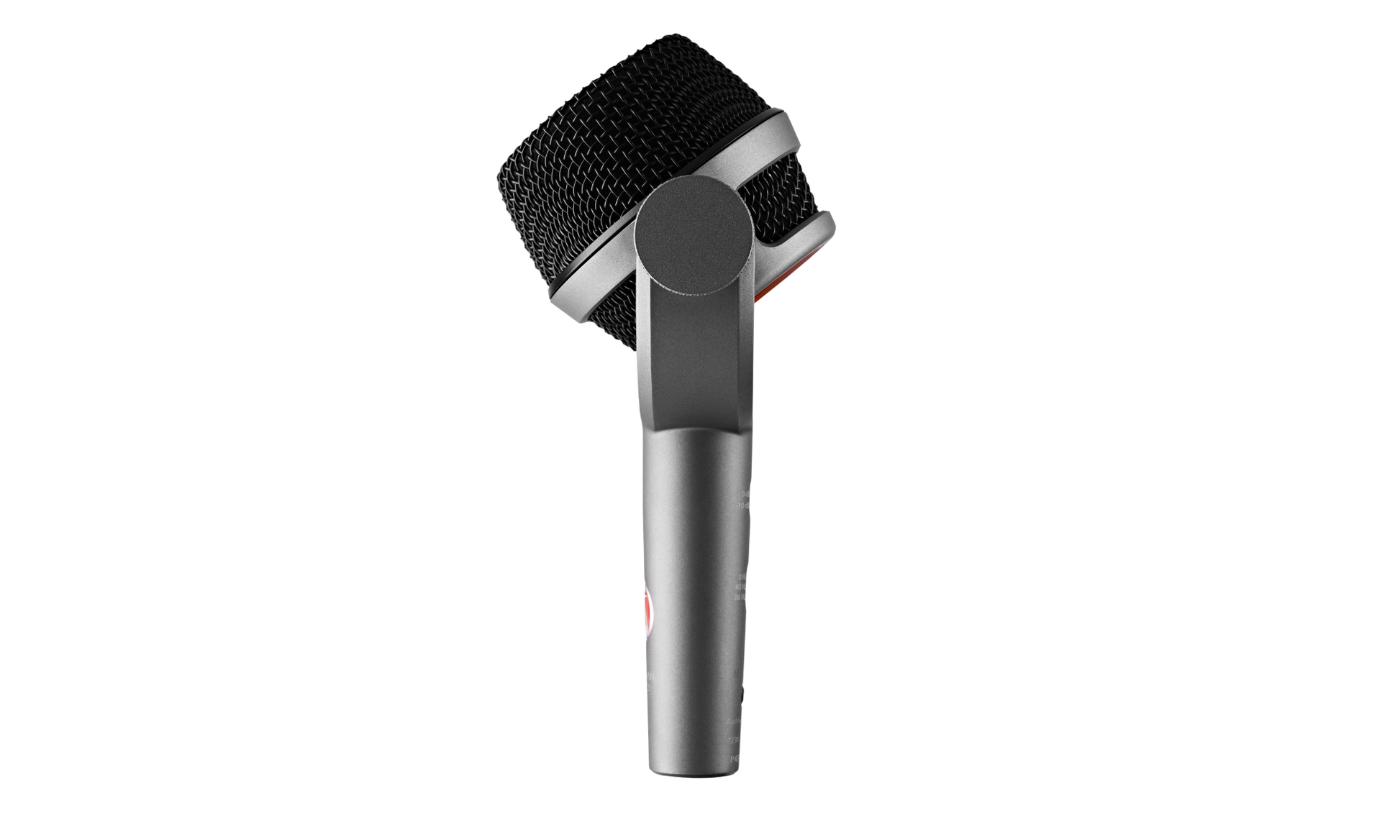

220° Swivel Joint

Designed for ultimate flexibility, the OC7 features a unique swivel joint with 220° rotation, allowing precise positioning even in the tightest spaces. Its ultra-durable metal housing withstands drumstick hits and the rigors of both studio and live use. Every OC7 is made in Vienna, ensuring precision engineering and superior quality.

Key Features

• True condenser instrument microphone with Austrian Audio sonic signature
• Handmade OCC7 small-diaphragm capsule, inspired by CK1
• Linear frequency response with high SPL handling up to 154 dB (160 dB with pad)
• Ideal for drums, amps, acoustic instruments, and close-miking applications
• Swivel joint with 220° rotation for maximum placement flexibility
• Ultra-durable metal housing withstands direct hits and touring
• Transformerless output for clean, natural sound
• Made in Vienna with meticulous quality control

Technical Specs

• Polar pattern: Cardioid
• Frequency range: 20 Hz – 20 kHz
• Sensitivity: 10 mV/Pa
• Equivalent noise level: 19 dB SPL (A)
• Max. SPL: 154 dB SPL (>160dB SPL with pad)
• Low cut filter: 40 Hz (2nd order), 80 Hz (2nd order)
• Pad: -10 dB
• Impedance: 275 Ω (symmetrical)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 2 mA)
• Main connector: XLR 3 pin
• Dimensions: 147 x 82 x 54 mm
• Weight: 275 g

In The Box

• OC7 Microphone
• OCH8 Mic clip
• Carry case

Additional Accessories

• DPH12 Drum Holder
