OC16 Studio Set

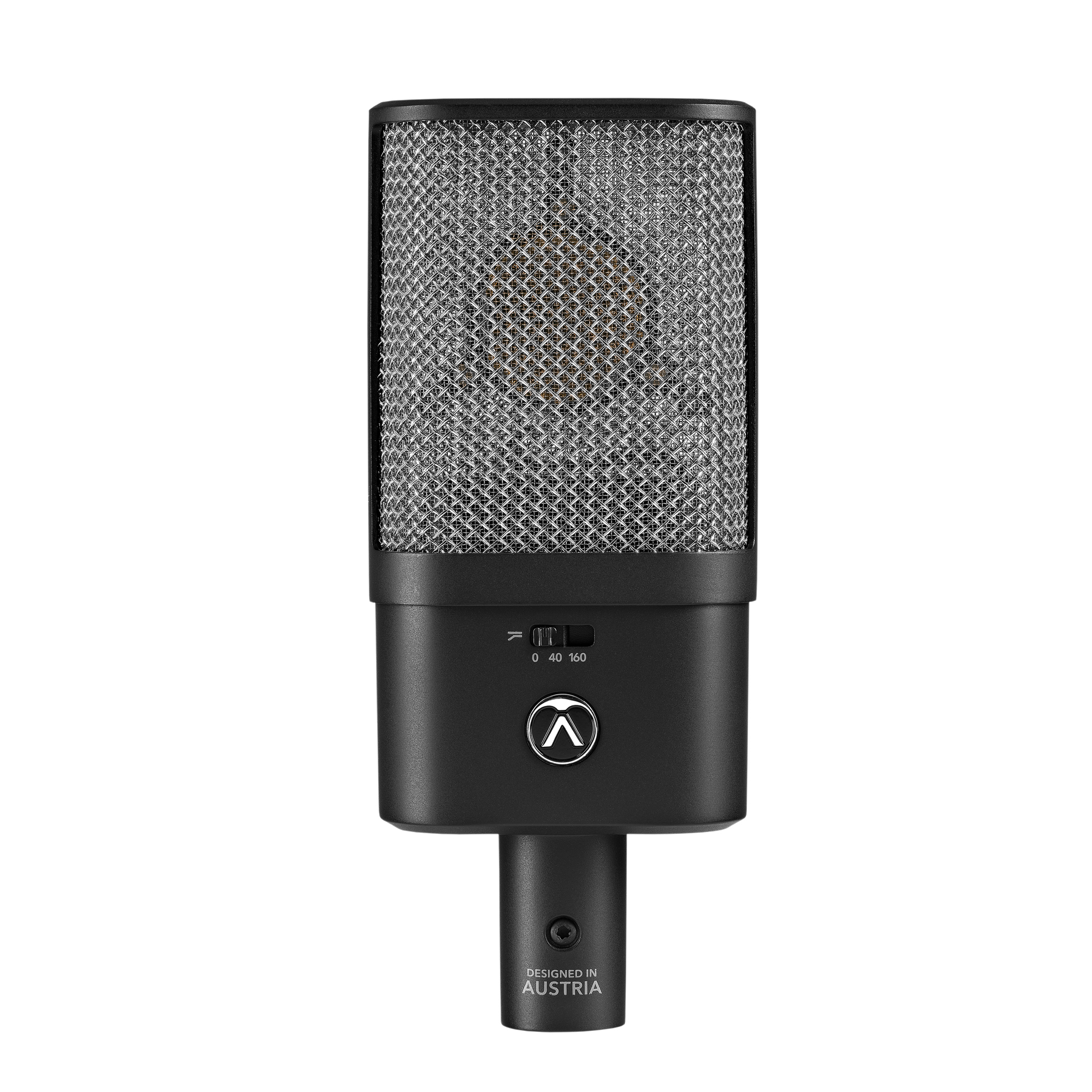

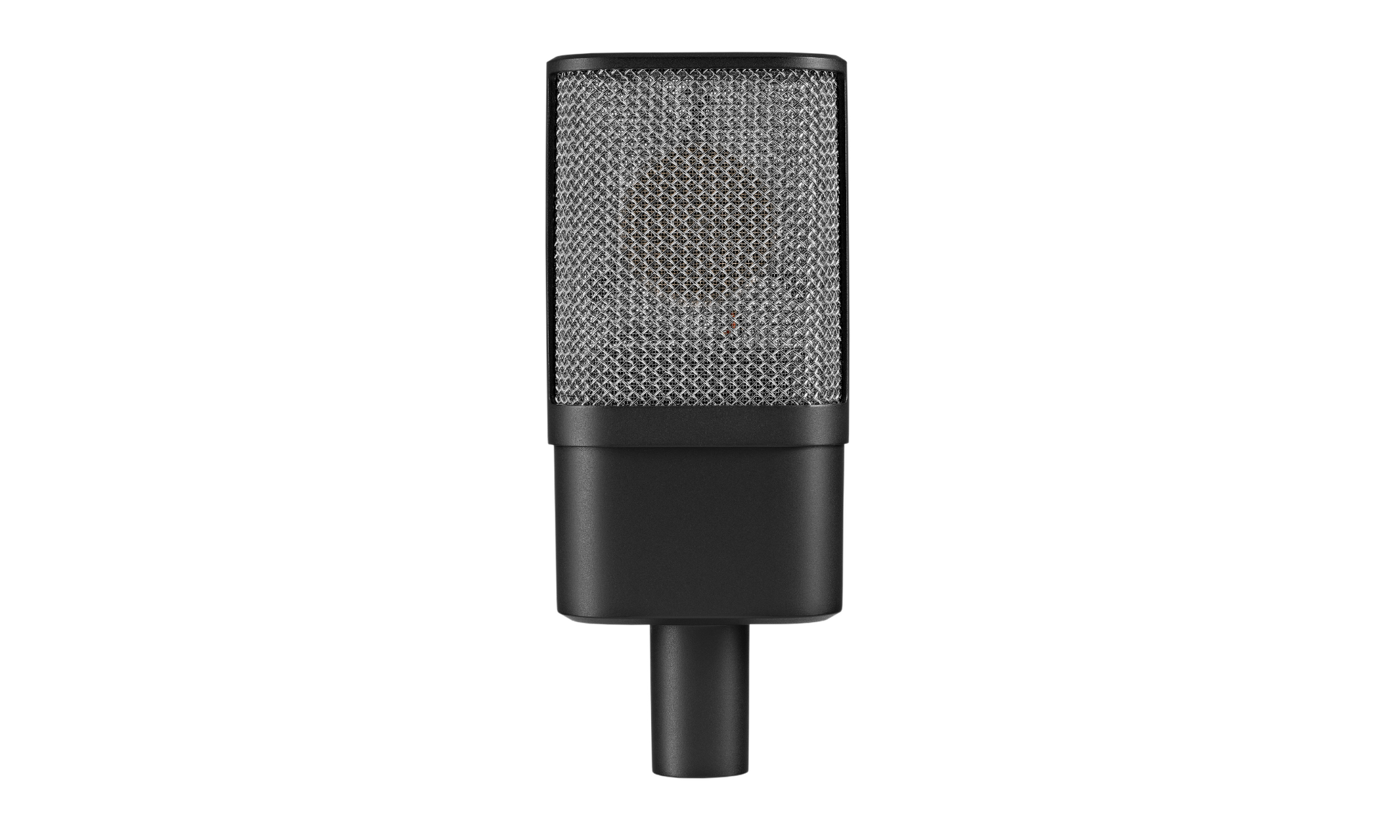

OC16 Large Diaphragm

The OC16 is a large-diaphragm condenser microphone that blends legendary sound quality with state-of-the-art design. Built around the acclaimed CKR6 ceramic capsule and Austrian Audio’s Open Acoustic Technology, it delivers transparent, natural recordings with unmatched clarity—ideal for both studio and broadcast applications.

Whether you’re working in a home setup or a world-class studio, the OC16 performs with professional consistency. From drums, guitars, piano, and strings to vocals, podcasts, live streaming, and voiceover, its cardioid polar pattern ensures clean capture while effectively suppressing unwanted background noise.

High Tolerance

The OC16 is lightweight and robust, making positioning effortless even in hard-to-reach places. With a tolerance of up to 148 dB SPL, it handles everything from delicate acoustic instruments to the loudest amps and drums without distortion. Each capsule is handmade and tested in Vienna, ensuring every OC16 meets Austrian Audio’s renowned standard of precision.

Key Features

• Equipped with the handmade CKR6 ceramic capsule
• Open Acoustic Technology for natural, resonance-free sound
• Switchable low-cut / high-pass filters (40 Hz, 160 Hz)
• Lightweight, flat design for flexible placement
• Handles up to 148 dB SPL without distortion
• Elastic capsule suspension minimises structure-borne noise
• Precision cardioid polar pattern reduces background interference

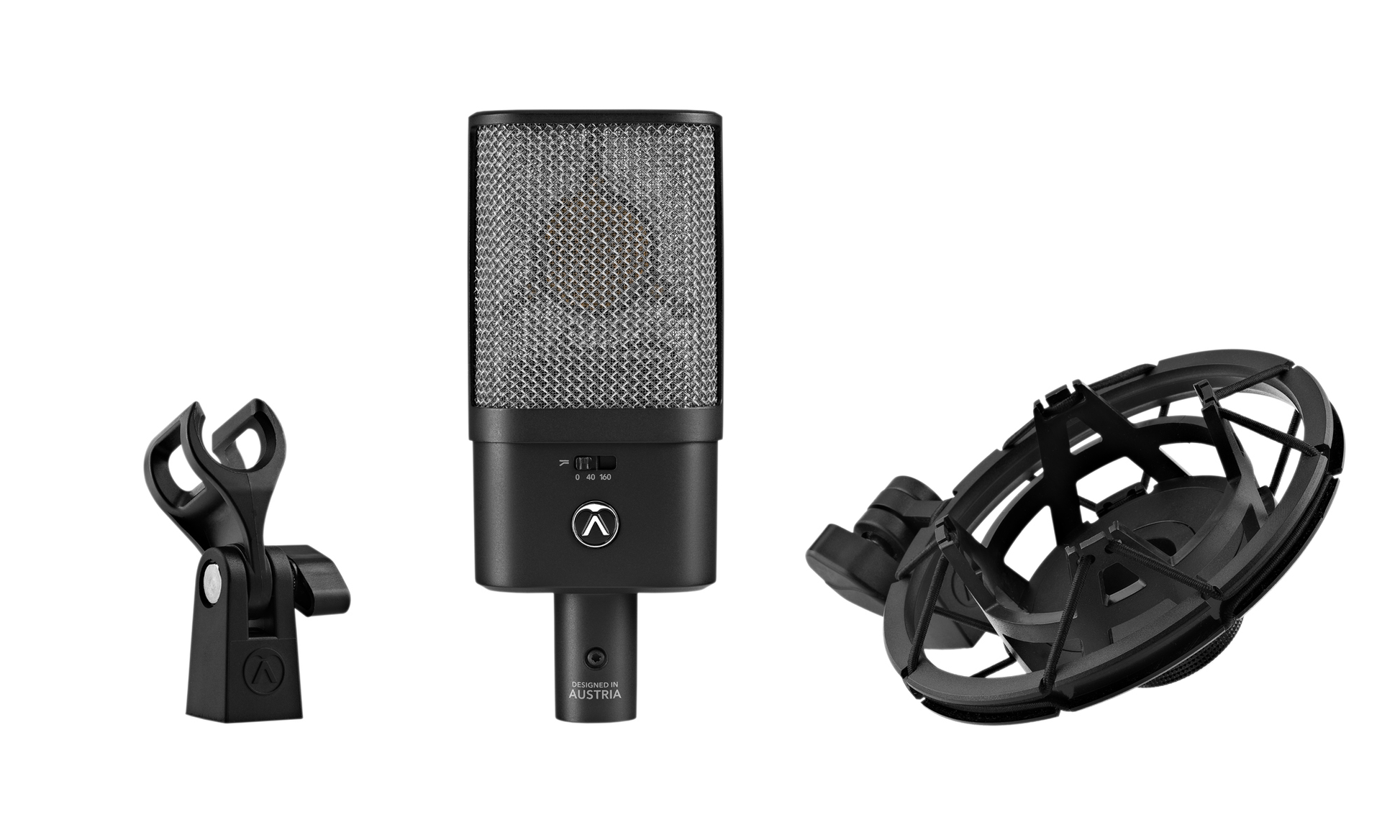

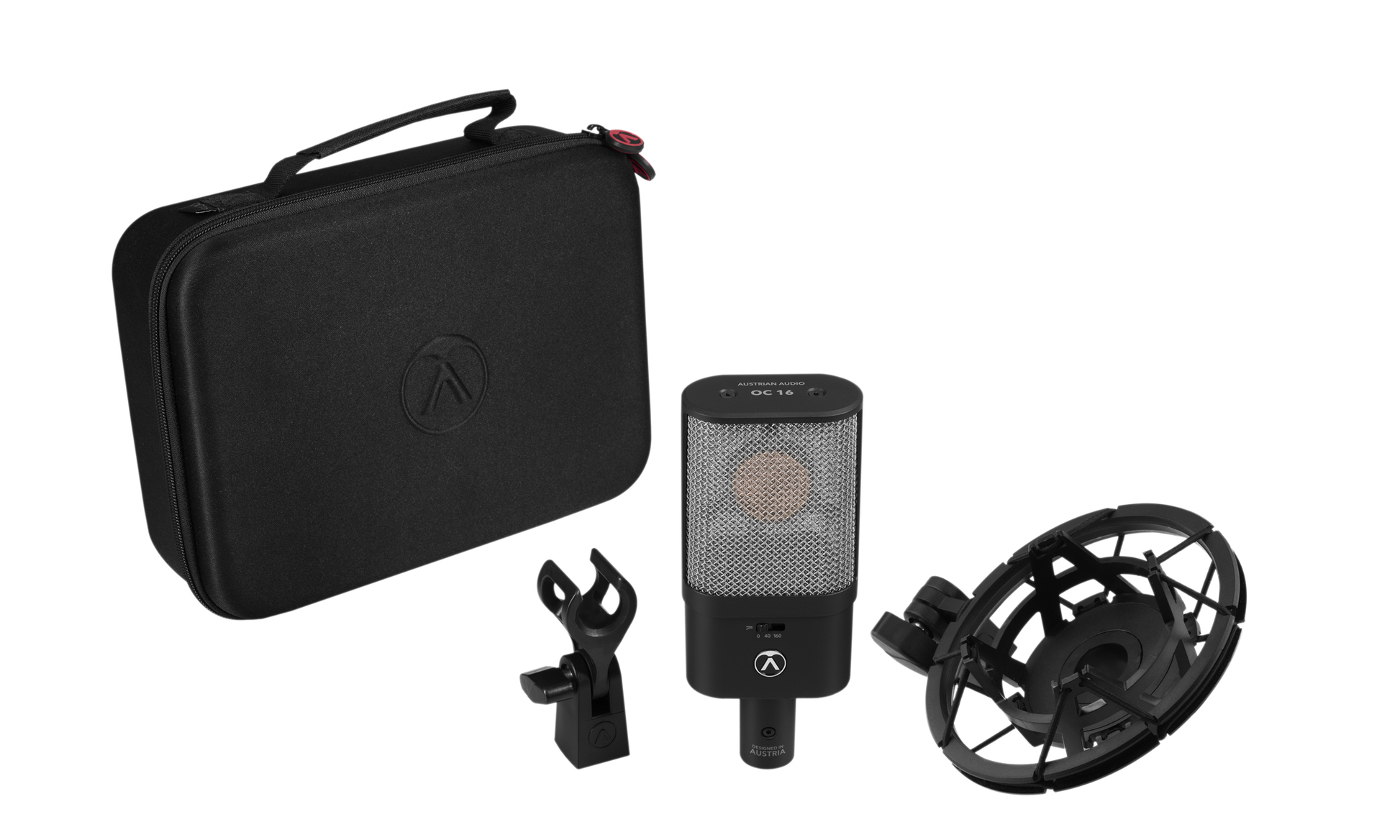

In The Box

• OC-16 Microphone
• OCS6 Shockmount
• OCH8 Mic clip
• MSC6 Case

Additional Accessories

• SB1 Stereo Bar

• MZP Mic Pouch

Technical Specs

• Polar pattern: cardioid
• Frequency range: 20 Hz - 20 kHz
• Sensitivity (all directions): 11 mV/Pa
• Equivalent noise level: 14 dB SPL (A)
• Max SPL: 148 dB
• Low Cut filter: 40 Hz, 160 Hz
• Impedance: 275 Ω
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 2.2 mA)
• Main Connector: XLR 3 pin
• Dimensions: 157 x 66 x 34mm
• Weight: 335g (0.734 lbs)
