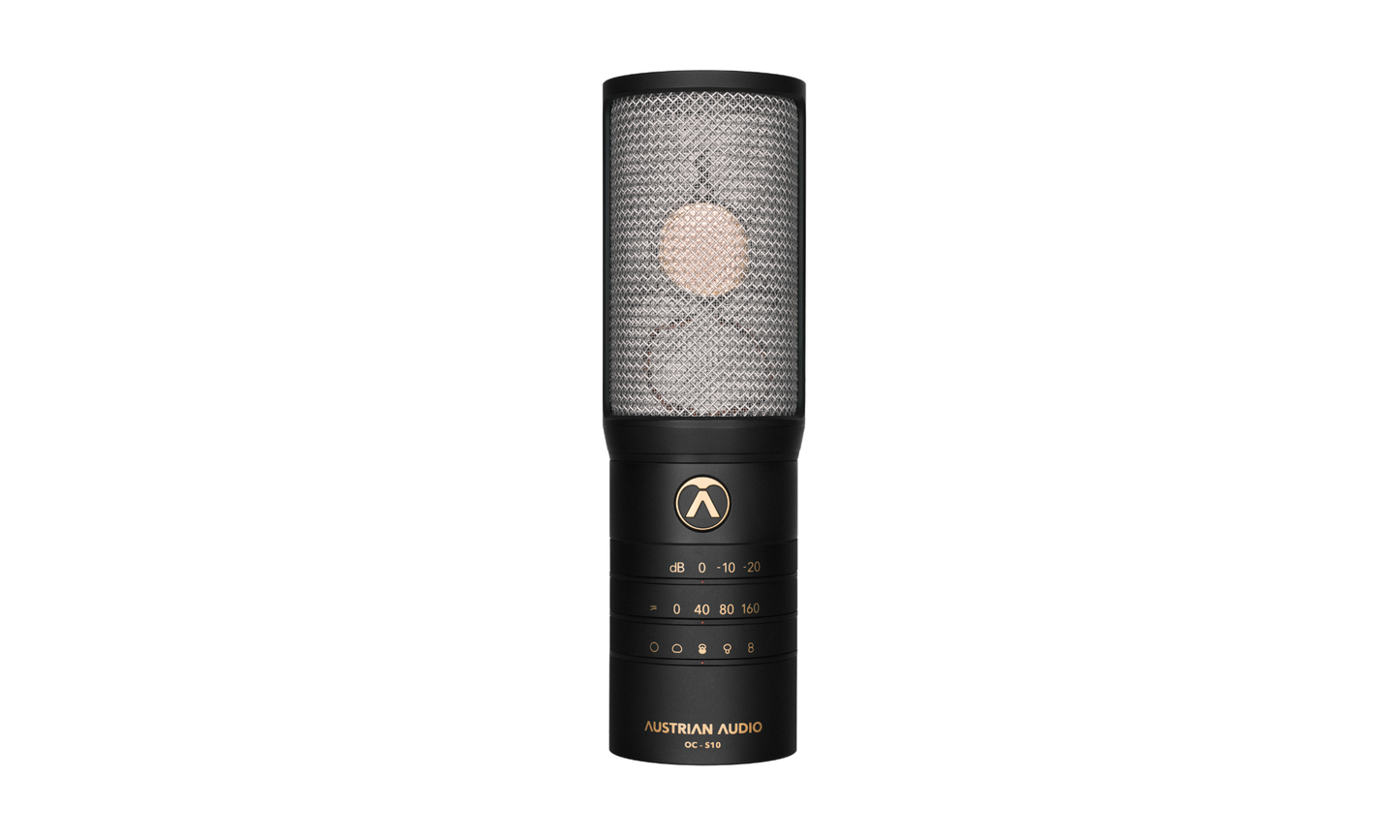

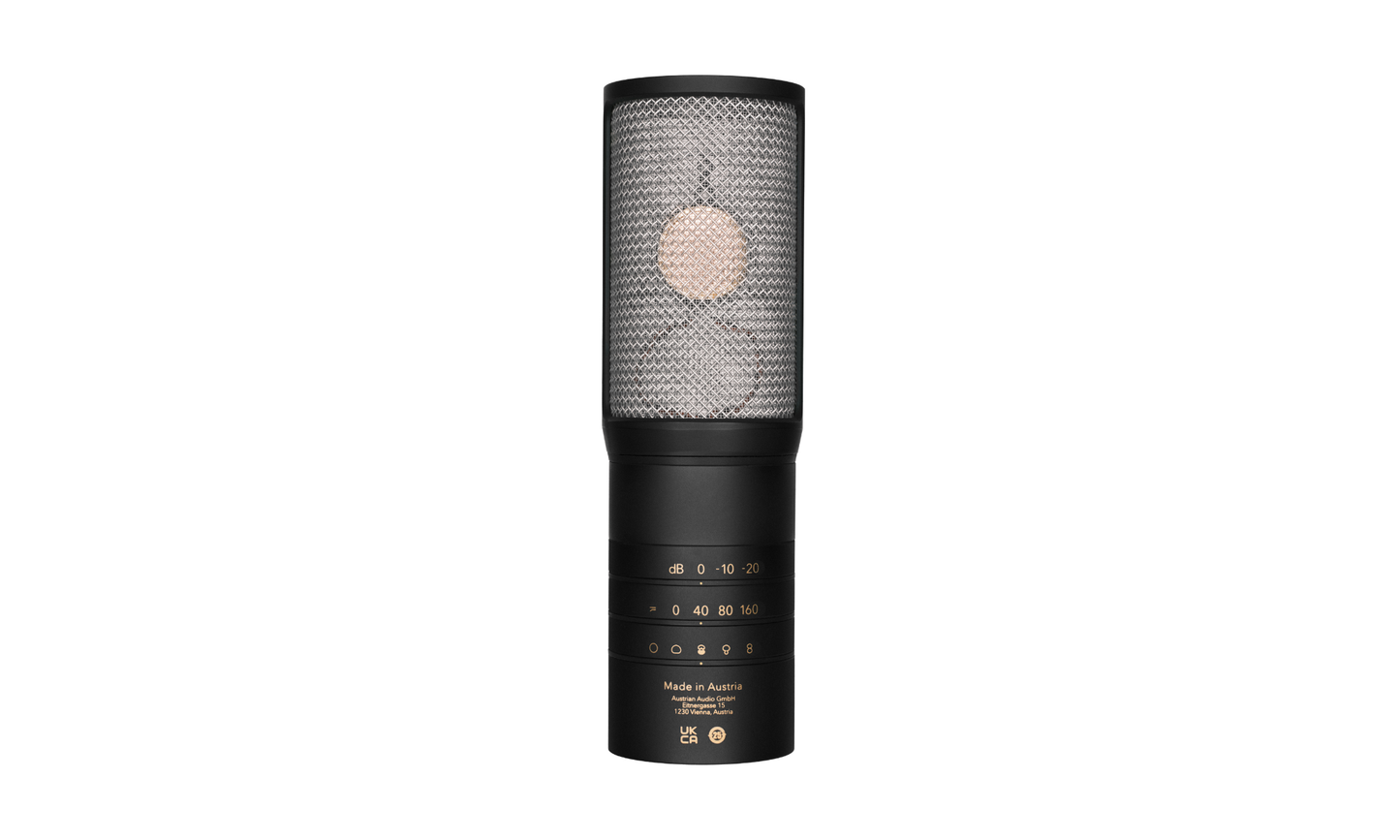

OC-S10 Studio Set

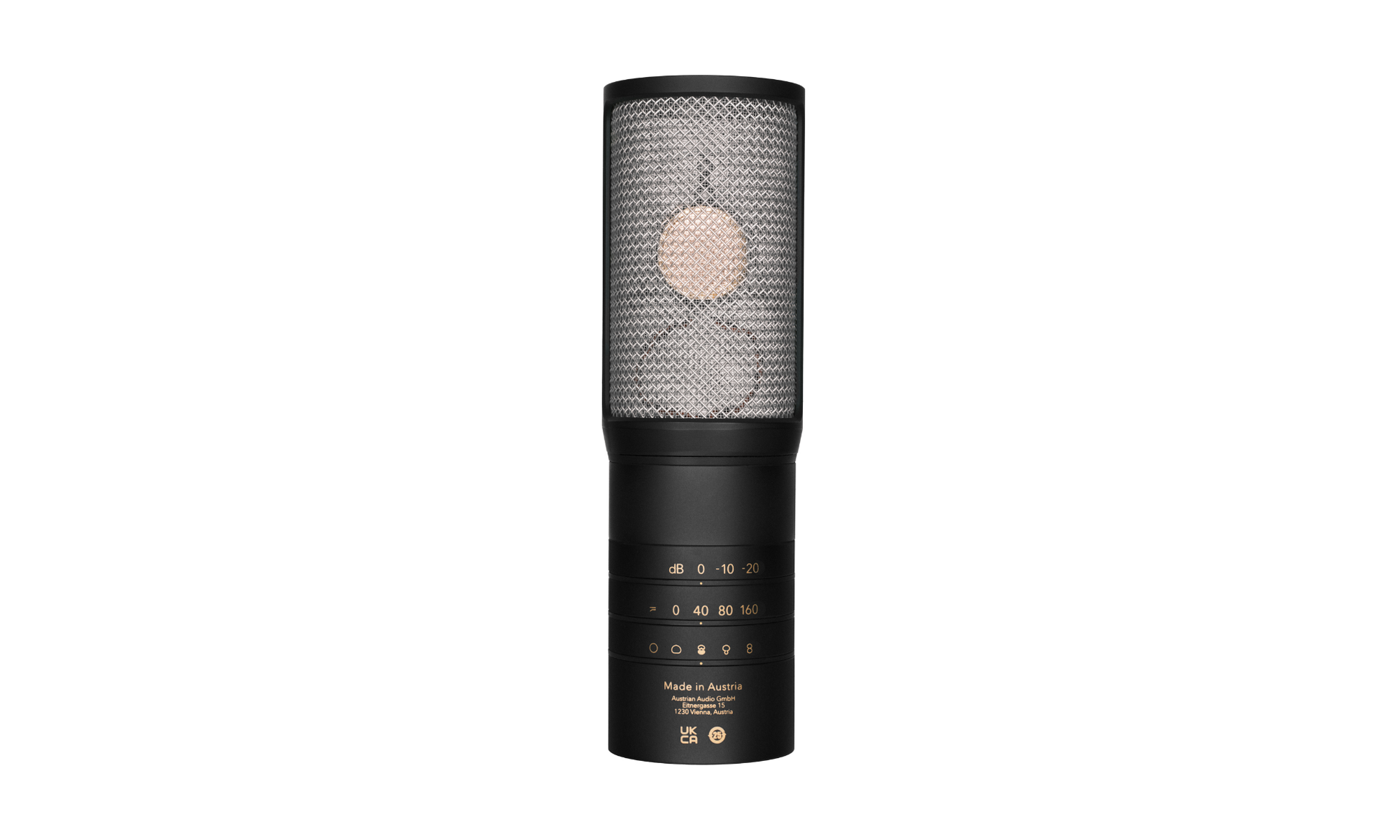

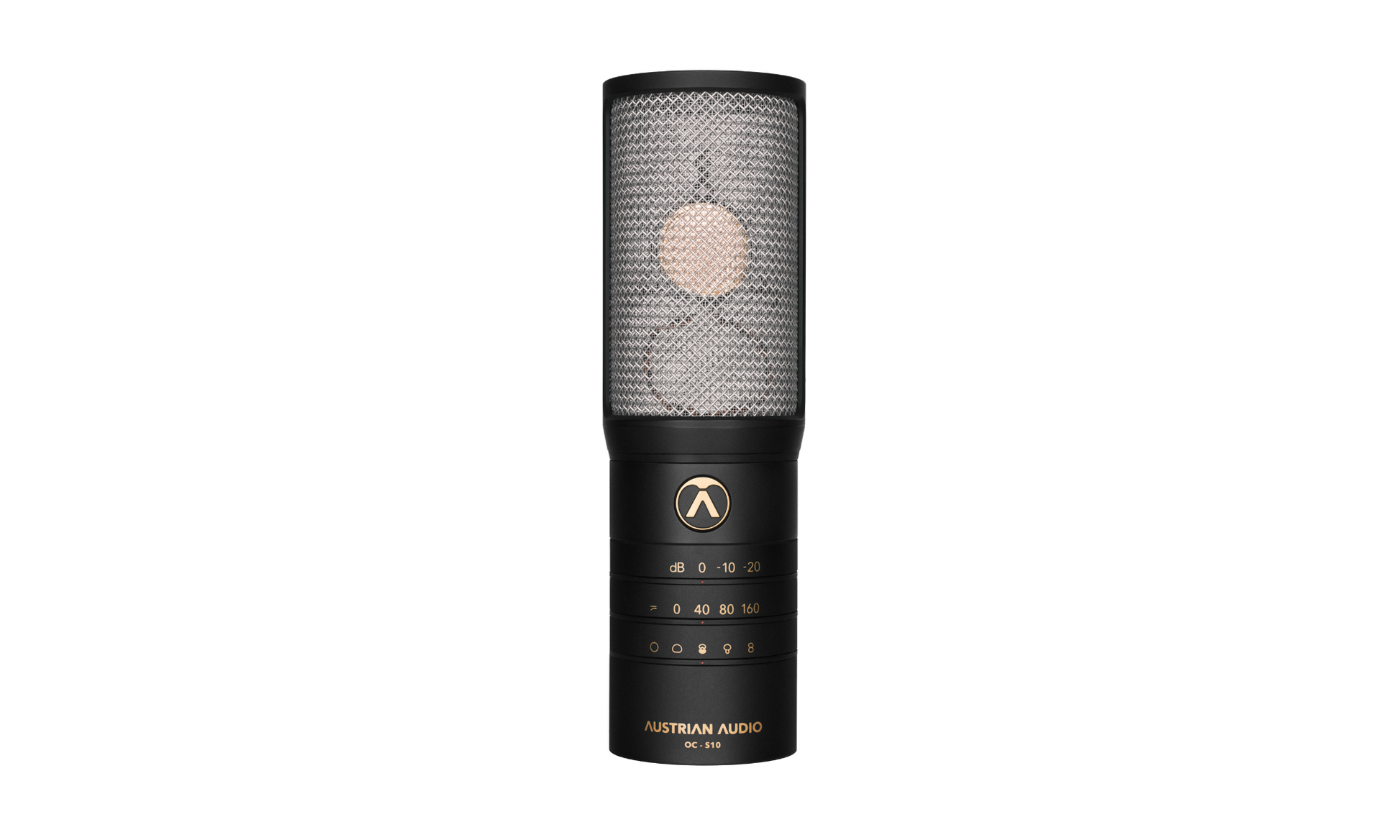

OC-S10 Premium Microphone

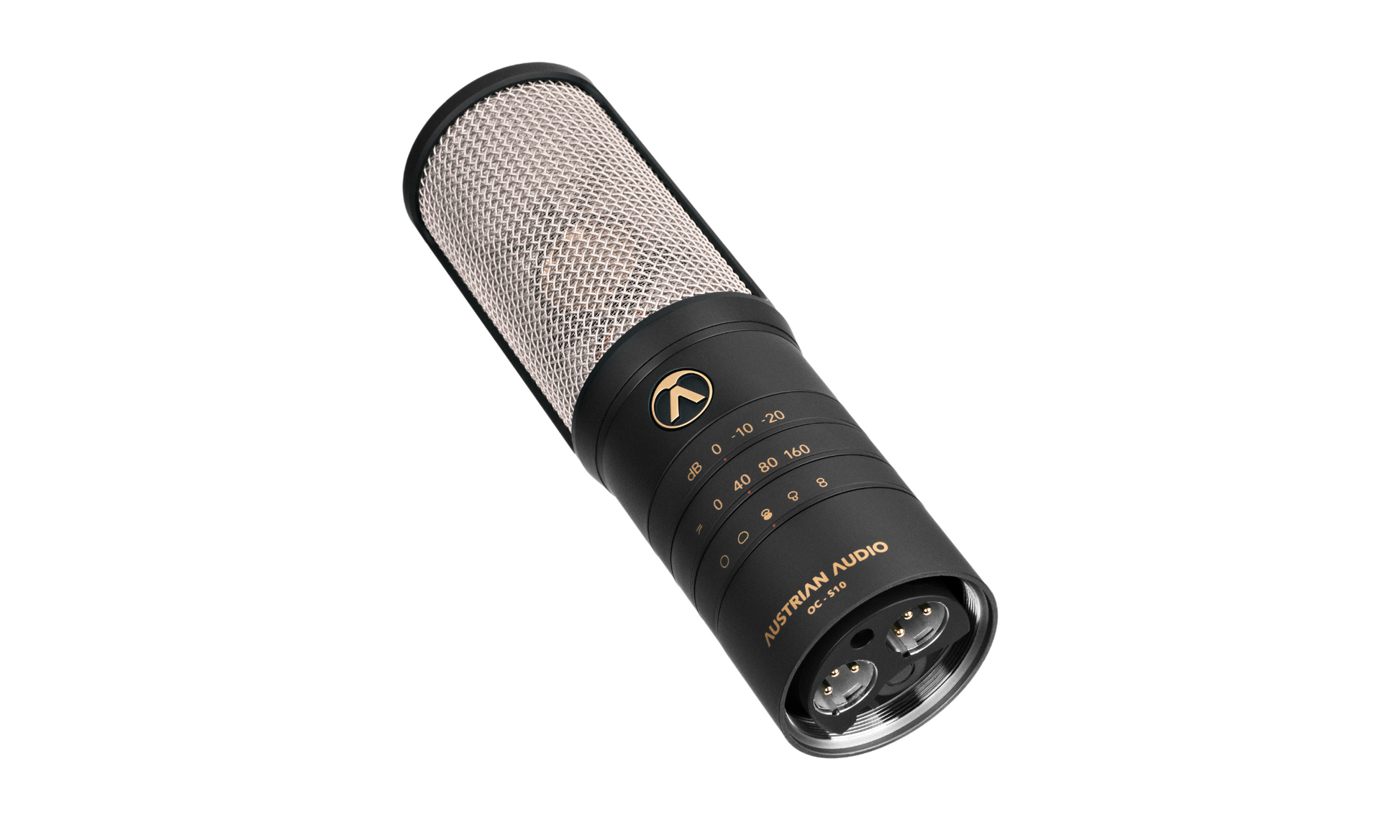

The OC-S10 is a reference large-diaphragm condenser microphone, engineered for lead vocals and solo instruments with unmatched precision. Featuring five selectable polar patterns, three low-cut filter options, and switchable –10 dB and –20 dB pads, it offers outstanding versatility for any recording scenario.

Its unique dual-output design, with two full-size XLR outputs, provides maximum post-production flexibility, allowing you to refine and craft your perfect sound. At its core is the CKR12 ceramic capsule — selected for consistent, stable, high-end performance.

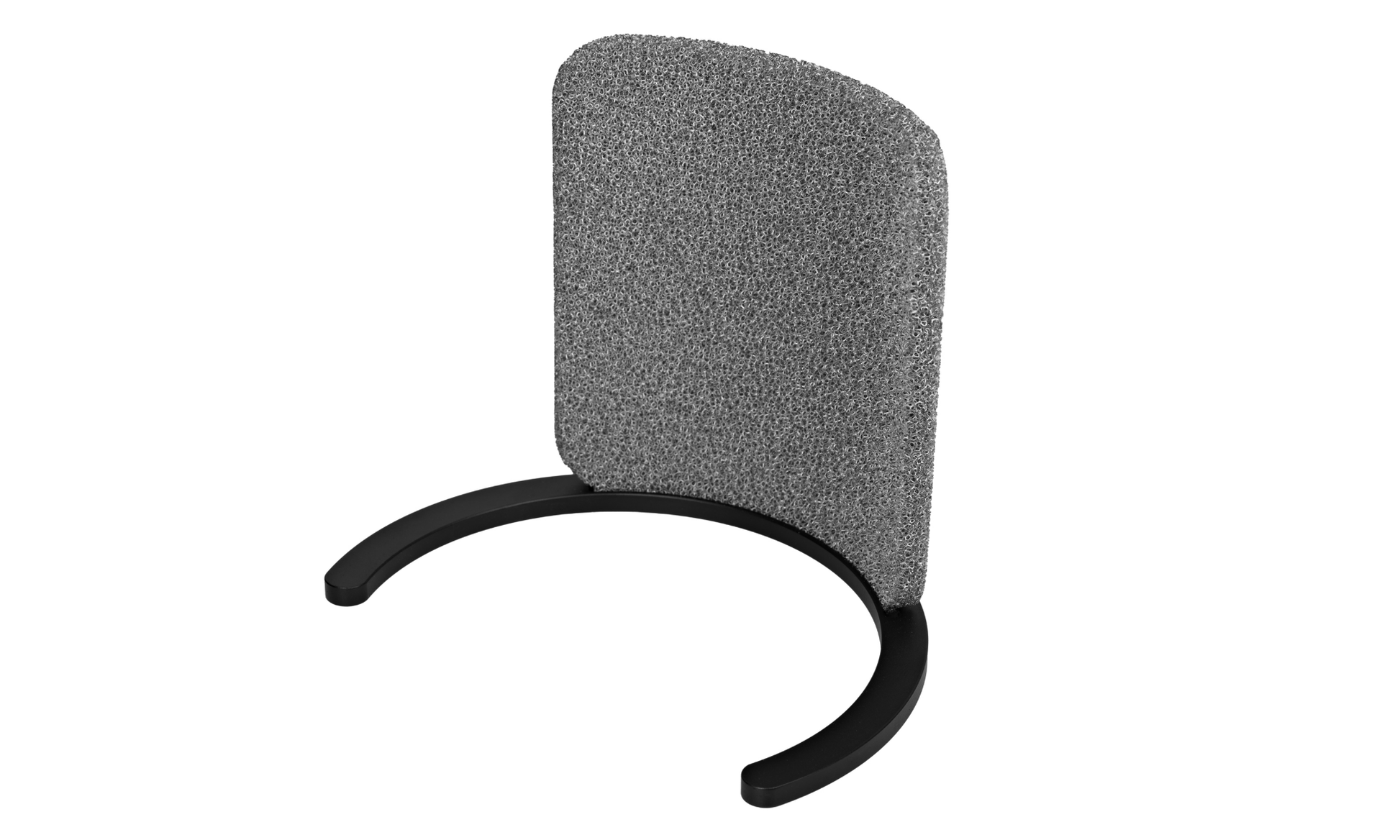

Open Acoustic Technology ensures a pure analogue signal path, while the included shock mount with ball-joint connection allows for effortless and accurate positioning. The magnetically attached pop filter, specially designed to avoid reflections or attenuation in the high-frequency range, reduces plosives while preserving full vocal richness and detail.

Key Features

• CKR12 ceramic capsule for consistent high performance

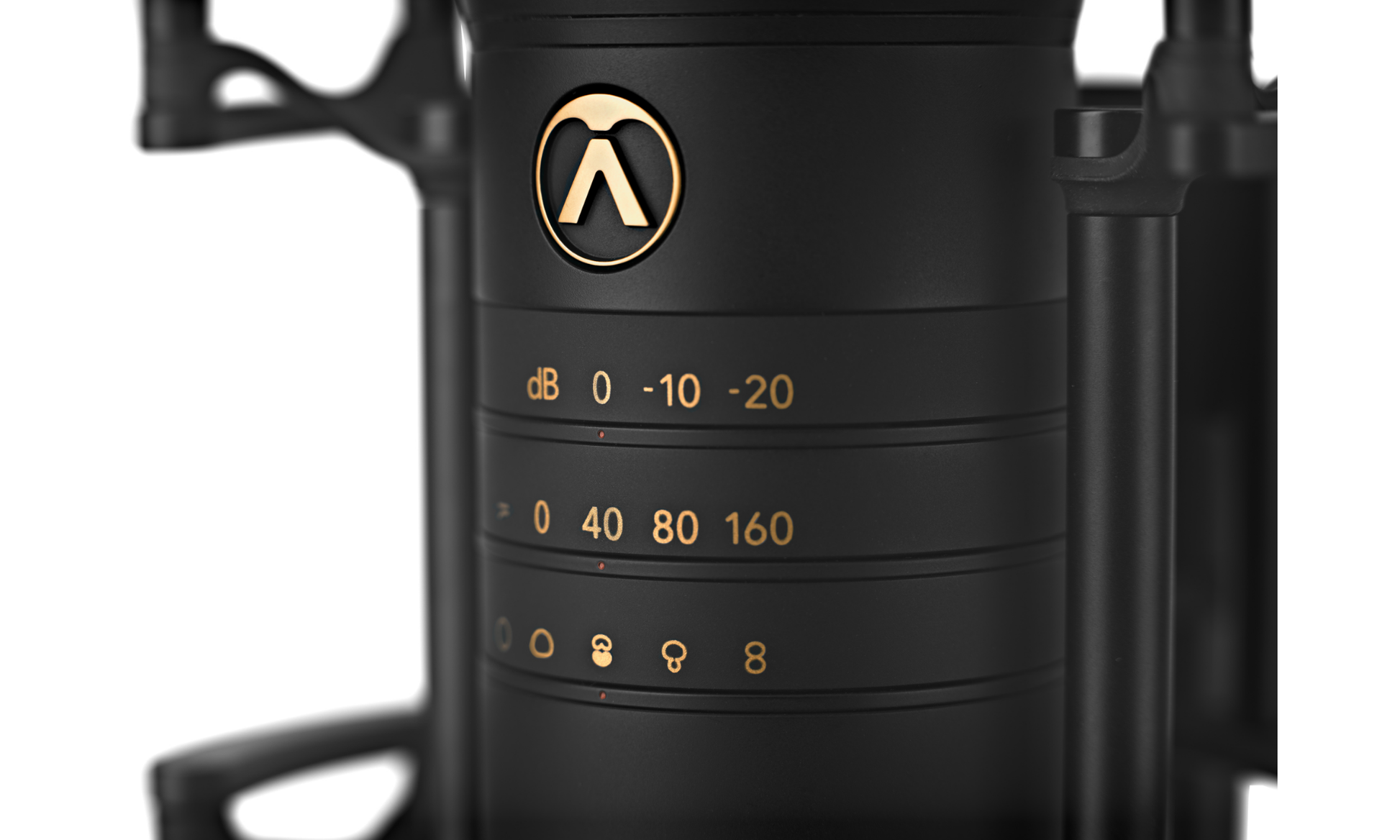

• Five selectable polar patterns
• Three low-cut filter options
• Switchable –10 dB and –20 dB pads
• Dual full-size XLR outputs

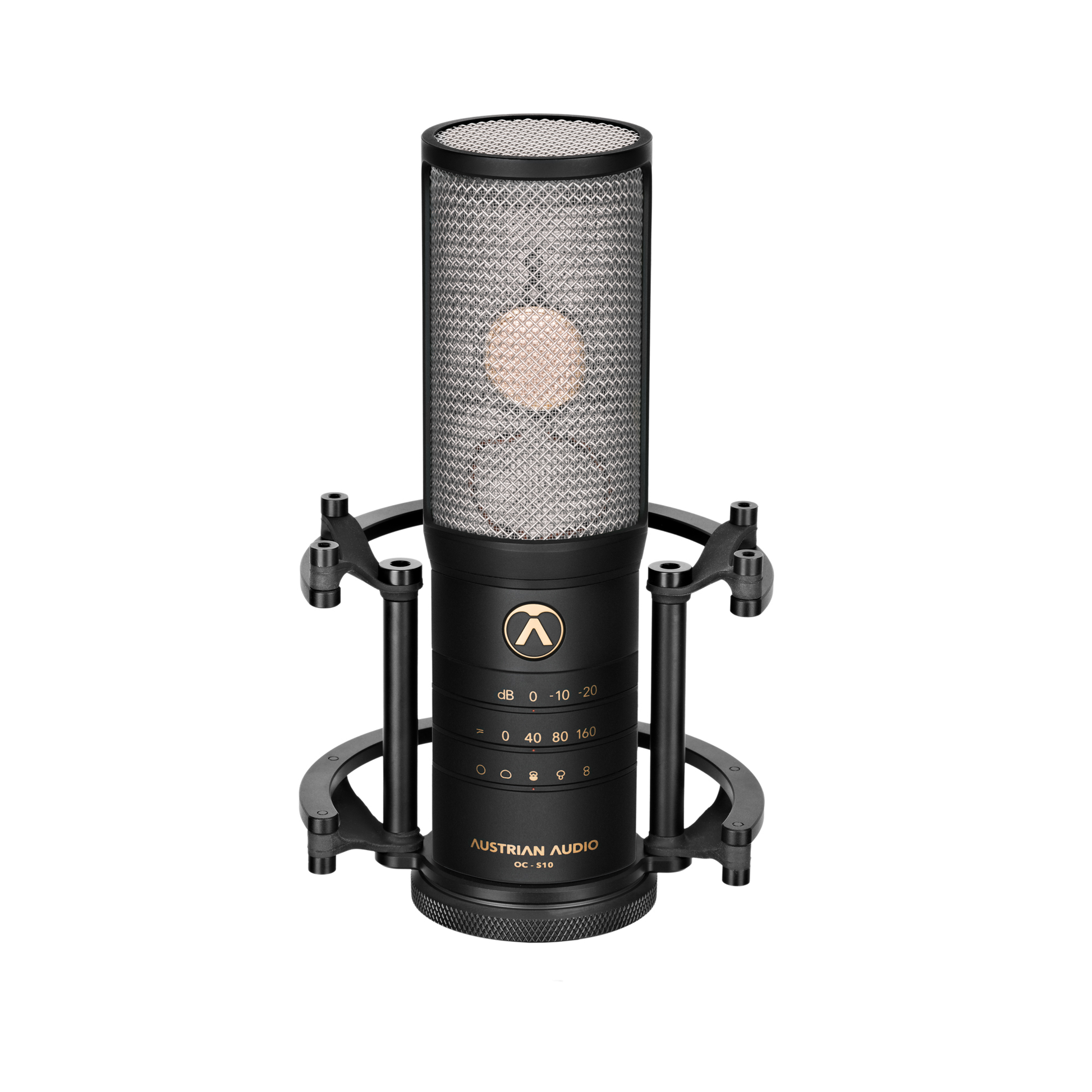

• Shock mount with ball-joint connection

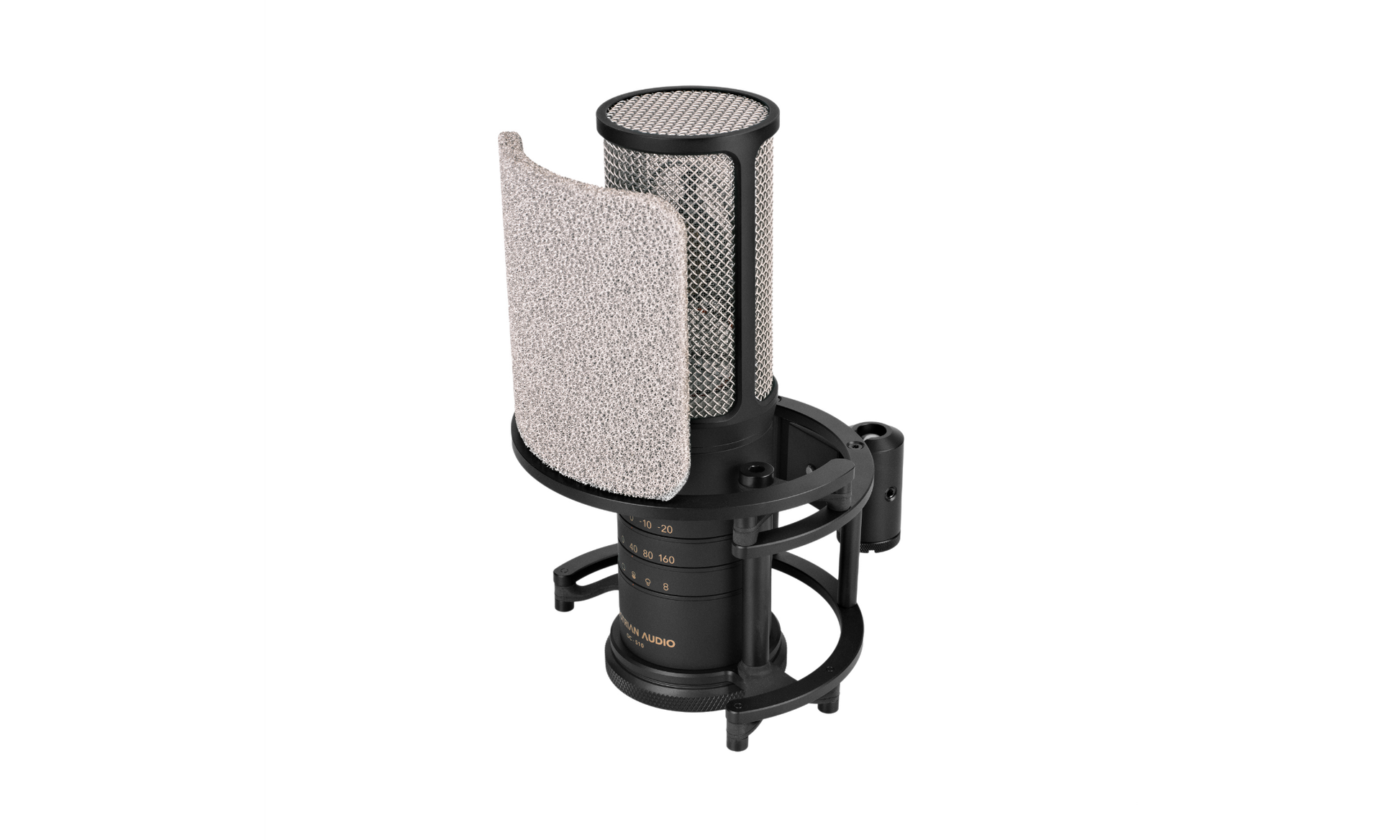

• Magnetic metal mesh pop filter included
• Pure analogue signal path with Open Acoustic Technology

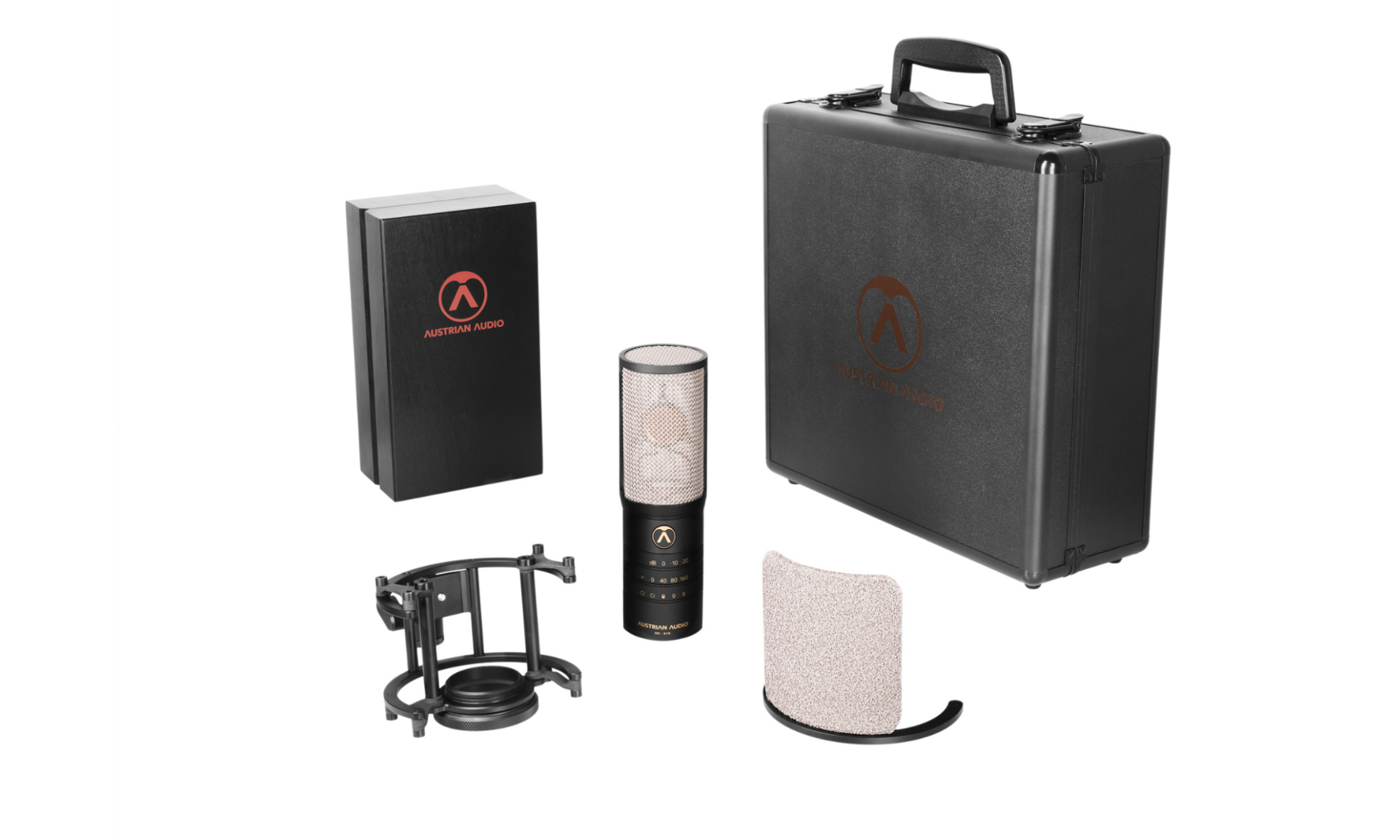

In The Box

• OC-S10 microphone

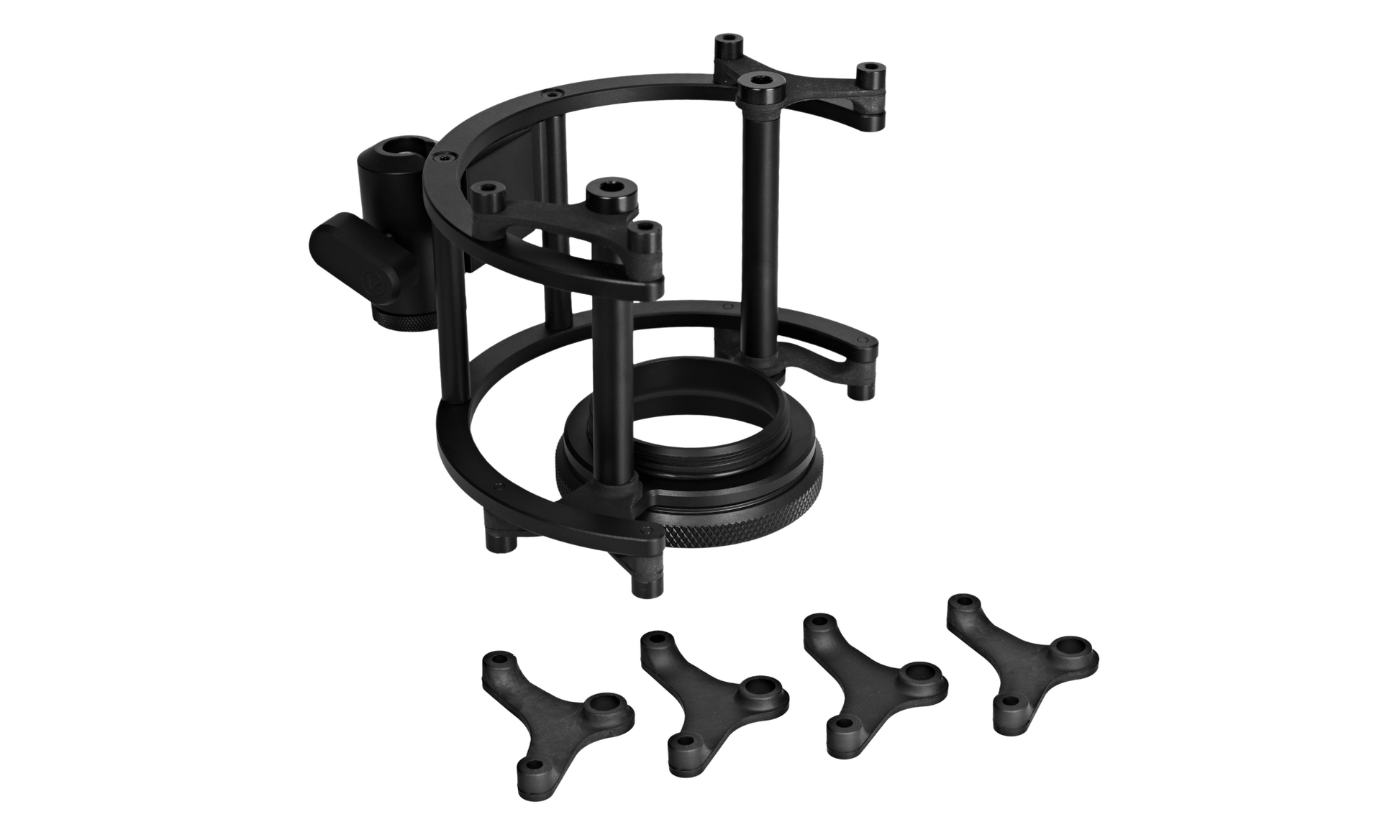

• OCS10 microphone shock mount
• OCP10 pop filter
• Wooden microphone case

Technical Specs

• Polar patterns: omni, wide cardioid, cardioid, hypercardioid, figure-of eight
• Frequency range: 20 Hz – 22 kHz
• Sensitivity: 14 mV/Pa
• Equivalent noise level: 8 dB SPL (A)
• Max SPL: 147 (157) dB SPL
• Low cut filter: 40 Hz, 80 Hz, 160 Hz
• Switchable pad: -10 db, -20 dB
• Impedance: 108 Ω (symmetrical)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 2.5 mA)
• Connectors: 2x XLR 3 pin
• Dimensions: 63 x 63 x 205 mm

• Weight: 690g
