D510 Dante

High Performance A/D & D/A Conversion

Bring the power and precision of Dante Audio over IP to your Harrison 500 Series system with the D510dante interface card. Designed for seamless network integration, the D510dante unlocks full AoIP connectivity, enabling pristine multichannel audio transmission between your D510r rack and any Dante-enabled environment.

Dante Networking

Built around 10 inputs and 14 outputs with high-performance A/D and D/A converters, the D510dante delivers exceptional sound quality and reliable, low-latency performance. In live sound applications, it lets you integrate your 500 Series modules directly into mix buses, subgroups, or channel inserts on a Dante-compatible console. In the studio, it provides a flexible routing matrix for sending and receiving audio across your Harrison modules and wider network.

Perfect for hybrid and networked workflows, the D510dante card bridges the gap between classic analogue tone and advanced digital connectivity — giving you total control, uncompromising fidelity, and the legendary sonic character of Harrison.

Technical Specifications

• General

  • 10 Inputs / 14 Outputs

• ADC
  • THD+N, 1kHz 24dBu: < 0.0008%

  • Noise A-Weighted: < -95 dBu

  • Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB

• DAC

  • THD+N, 1kHz 18dBu: < 0.006%

  • Noise A-Weighted: < -85 dBu

  • Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB

  • 0 dBFS = +24dBu D/A channels 1- 10

  • 0 dBFS = +18dBu D/A channels 11-14

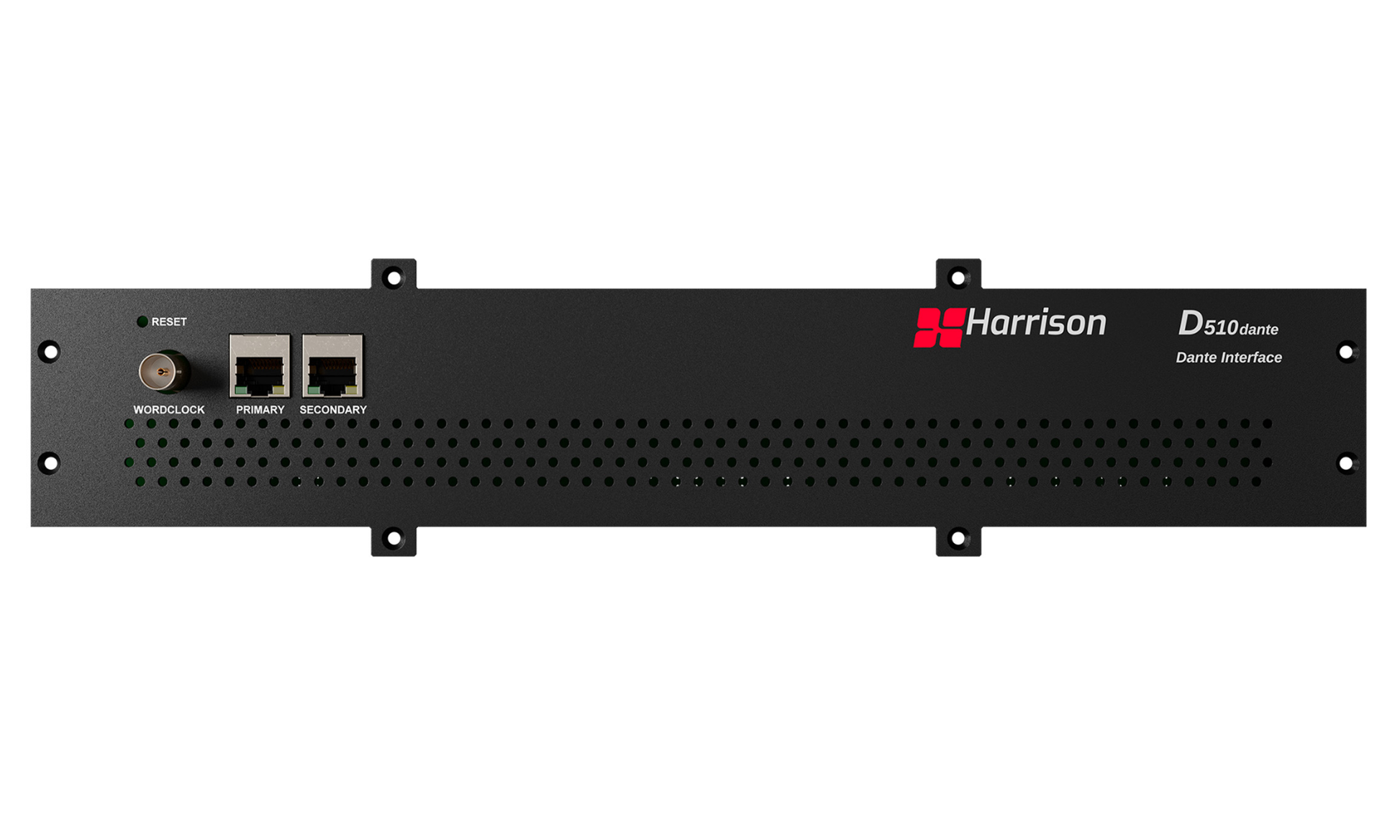

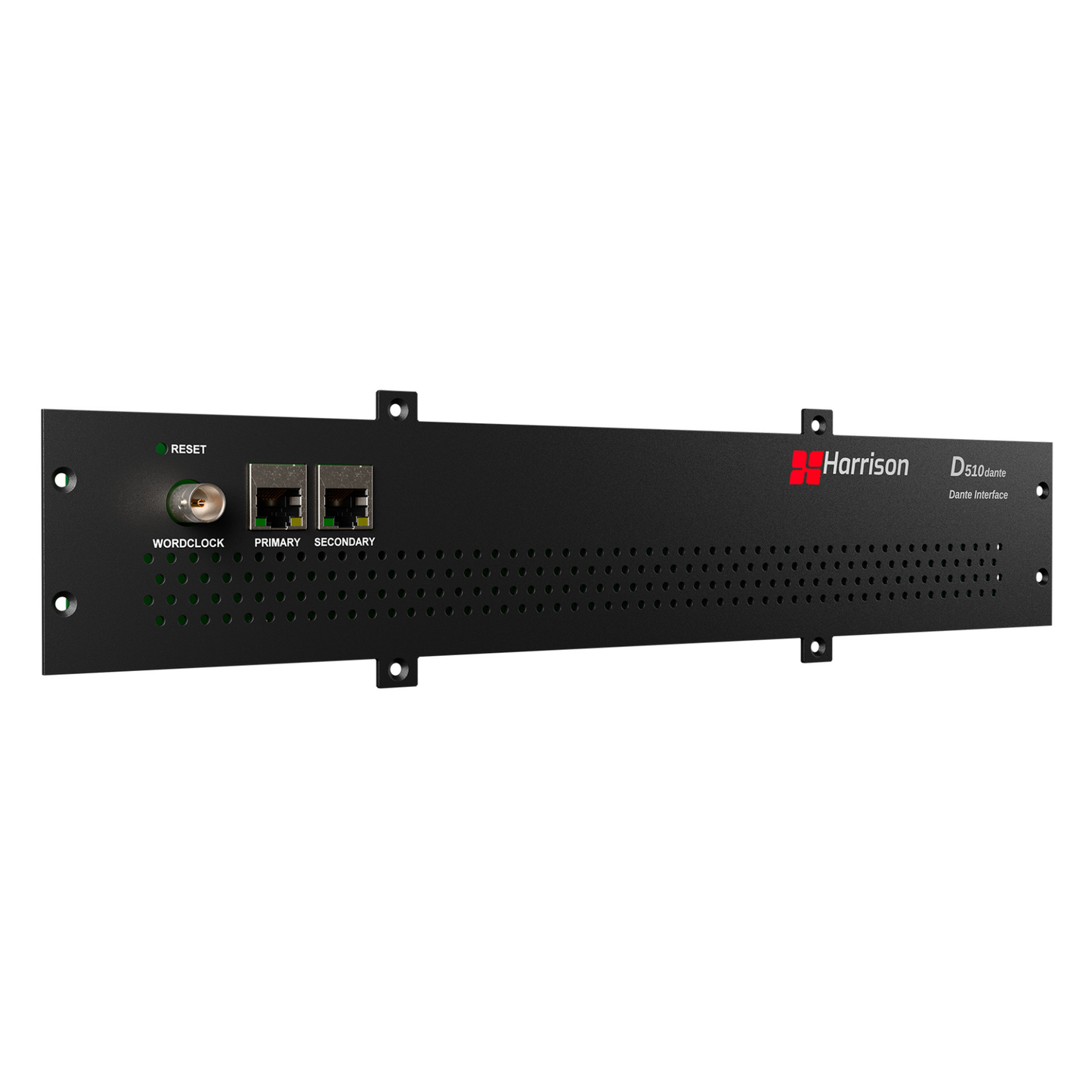

• Connectors

  • 2 x RJ45 Network Ports (Primary and Secondary)

  • BNC TTL Wordclock

• Latency

  • DA + AD <> Dante - 48kHz and 96kHz = 43.2 samples (0.9ms@48kHz,
  • 0.45ms@96kHz)
