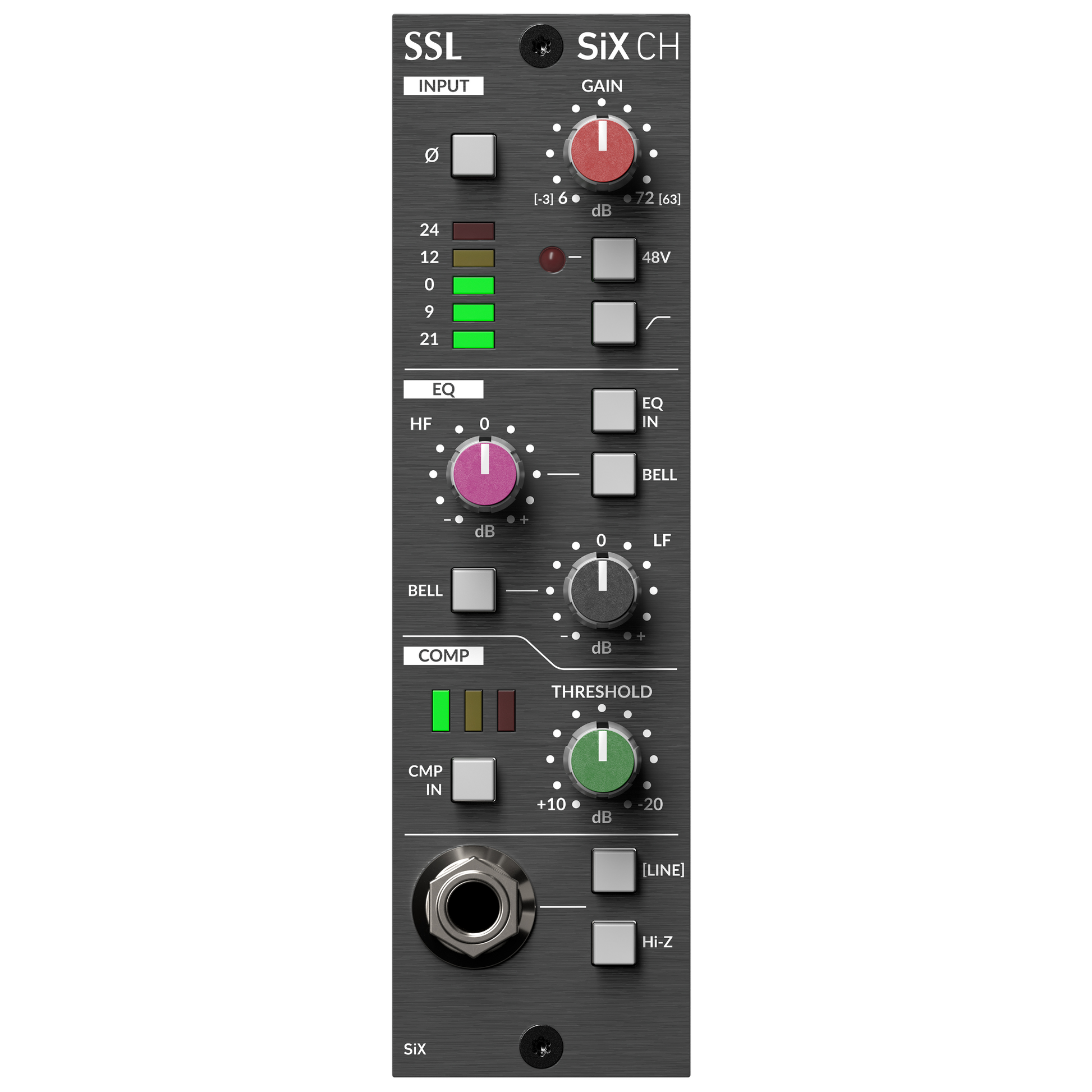

SSL 500-Series SiX Channel

The SSL SiX Channel 500 Series module brings the acclaimed SuperAnalogue™ processing from the SSL SiX console into a compact 500 Series format, designed to fit seamlessly into API Lunchbox® enclosures or other compatible 500 Series racks. With a nominal +4 dBu input/output level, this module delivers high-quality mic/line preamp, low and high-frequency EQ, and a single-knob compressor for professional-grade signal processing.

Ideal for expanding your SiX console or enhancing any 500 Series summing rack, the SiX Channel module provides versatile input flexibility, making it easy to integrate additional mic/line inputs into any studio or live setup. Whether used as part of a modular mixer, a channel strip upgrade, or a front-end for recording, this module ensures pristine audio performance with SSL’s signature clarity and precision.

Upgrade your 500 Series rack with the SSL SiX Channel and experience the legendary SSL sound in a compact, high-performance format.

SuperAnalogue

Using the same technology as SiX and large-format SSL consoles, SiX CH features a SuperAnalogue^TM mic pre, offering wide gain range and ultra-low noise. It’s clean, fast and punchy - the perfect preamplifier for any source material.

SSL HF and LF EQ

SiX CH EQ is a classic SSL style gentle, broad stroke two-band design with high and low shelving filters at 3.5 kHz and 60 Hz, +/-15 dB gain range. Each band can be independently switched between shelving and bell curves. The bell curves change centre frequency to operate at 5 kHz and 200 Hz giving greater versatility from the two controls.

Channel compressor

A ‘one knob’ channel compressor with features that give powerful and versatile performance from its deceptively simple controls. Using the tried and tested SSL feed-forward circuit design, program-dependant attack time and automatic make-up gain to maintain signal level.

TRS Line Input
