Audio 1/4" PCB mounted jack sockets

Usage guidance

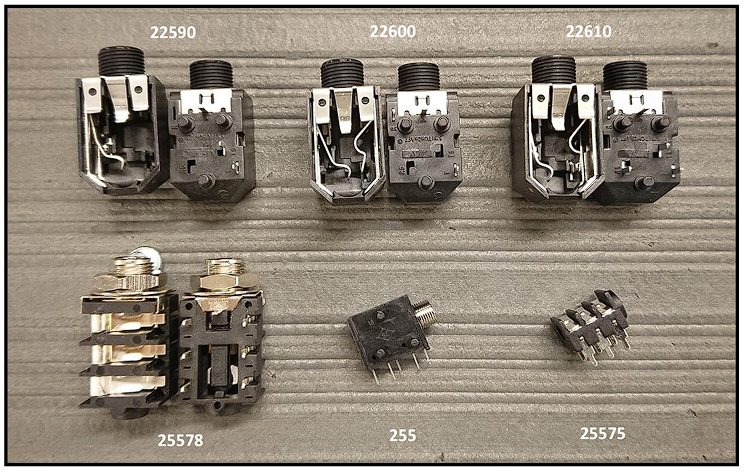

22590 -Mono -"112APC" Mainly used as Line Outs on "older" products (pre-2011) and for the Sustain/Rotor jacks. (NE/NE2/NE3/NE3HP, NS/NSEX, NL/2/2x/3, NP, C1/C2, NW, NM/NMG2)

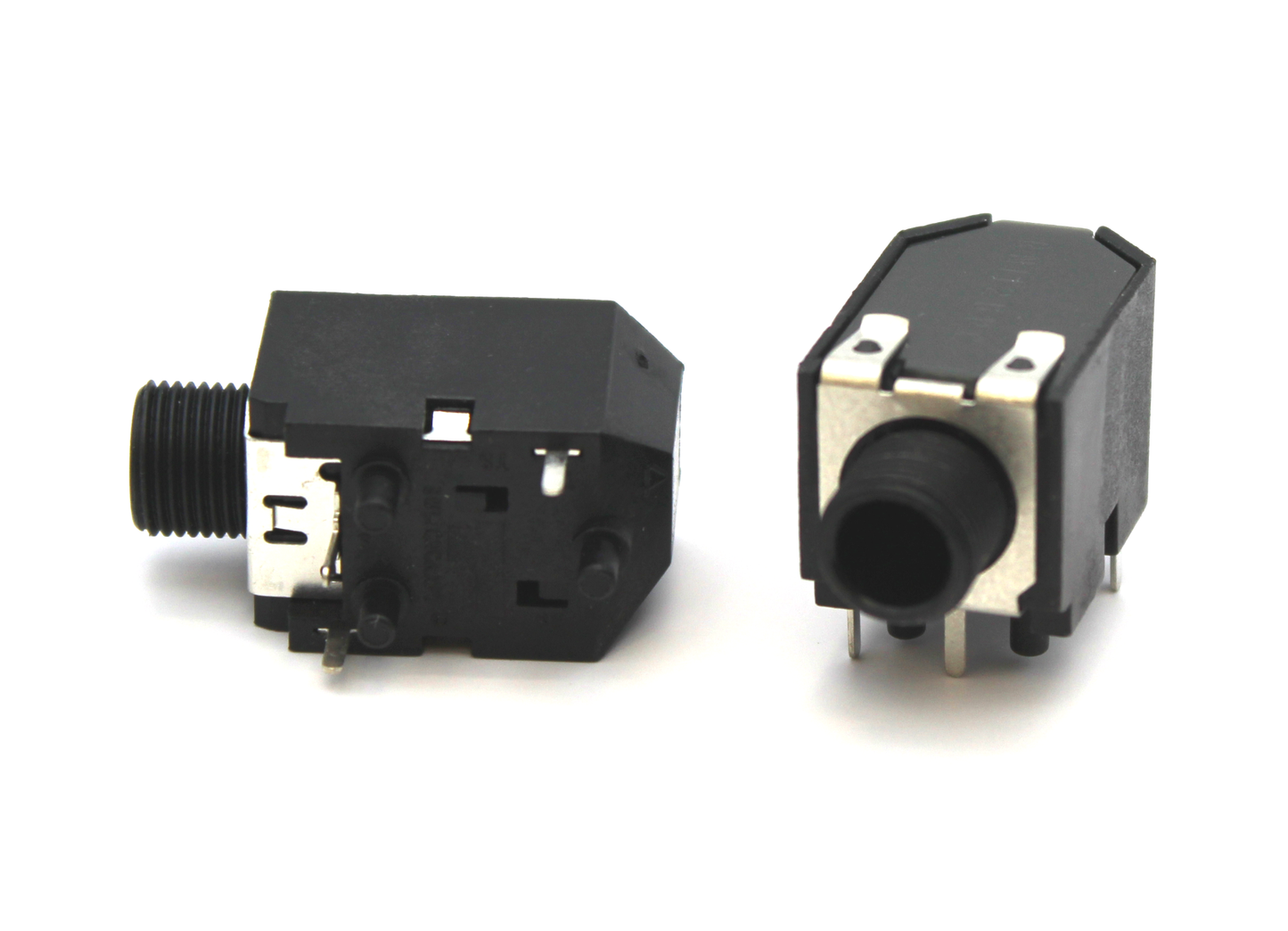

22600 -Stereo -"112BPC" Used for Headphones on all products and Line Outs on "newer" products (post-2011-, NE4/5, NS2, NP2, C2D, NL4) Even though this is a "stereo jack", the Line Outs are still handling mono signals.

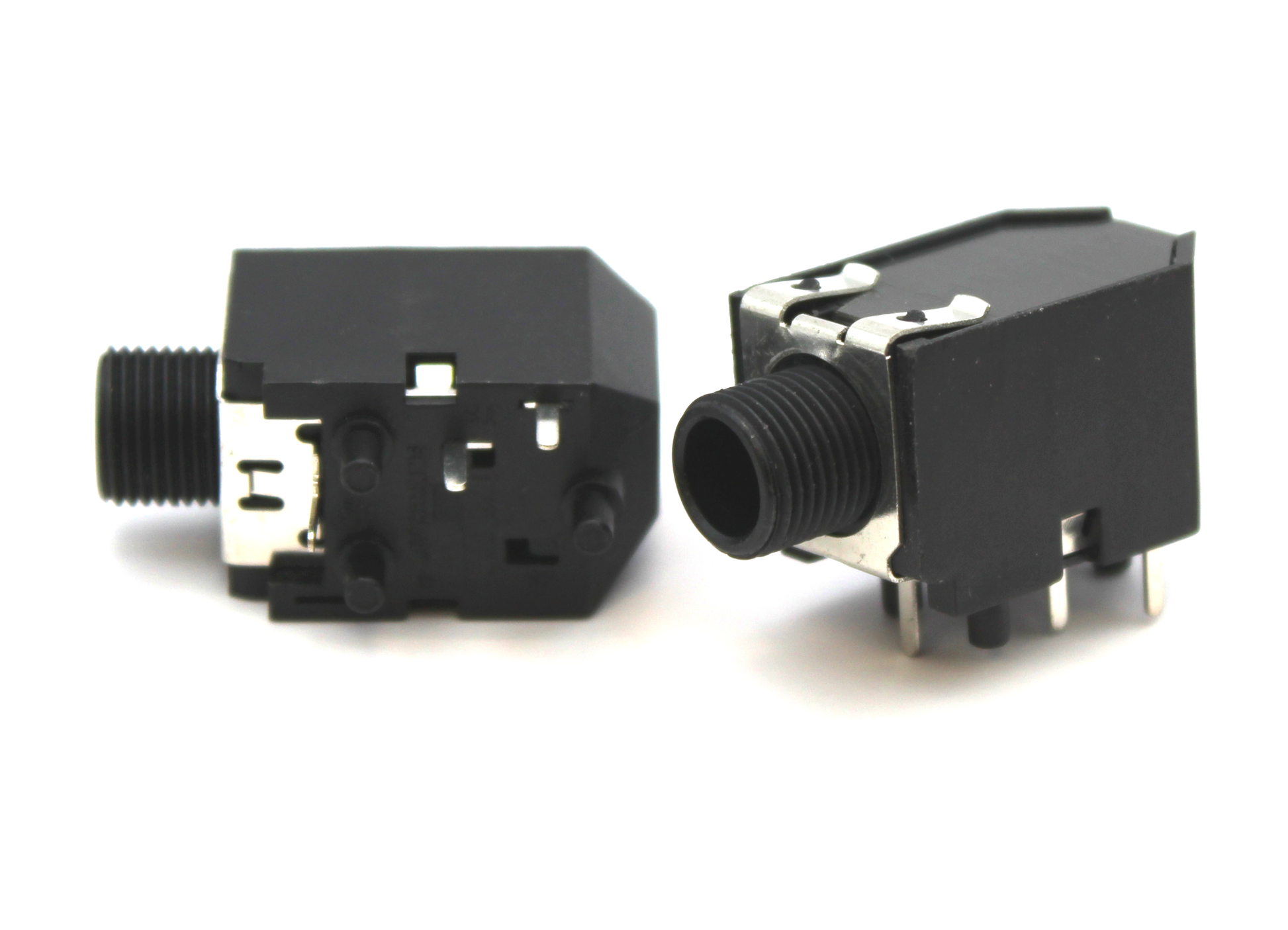

22610 -Stereo/Break -"114BPC" Mainly used for Control/Swell functions on various products, but also as the sustain jack where the Nord Triple Pedal is used (NE5/NE6/NP/NP2/NP3/NP4/NS2/NS2EX/NS3).

25578 -Mono/Stereo/Break/All Purpose New jack used on the NP4v2, NG and NW2 mainboard. This "All Purpose" jack is used on all positions instead of the three different types on the previous mainboard revision.
